(35.204.0102) - 3 REAR CONTROL VALVES WITH 6 COUPLERS - OUTER CONTROL LEVERS - ISO (VAR.334195-336108)

Запчасти Case IH FARMALL 65C (35.204.0102) - 3 REAR CONTROL VALVES WITH 6 COUPLERS - OUTER CONTROL LEVERS - ISO (VAR.334195-336108) (35) - HYDRAULIC SYSTEMS

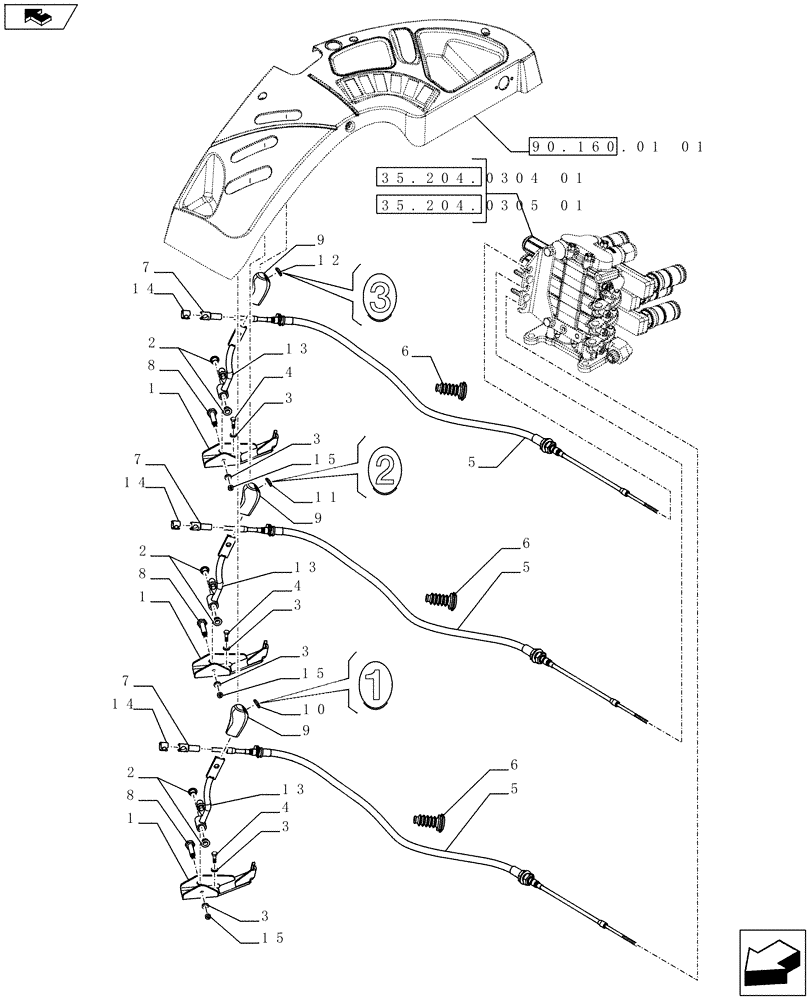

Схема запчастей Case IH FARMALL 65C - (35.204.0102) - 3 REAR CONTROL VALVES WITH 6 COUPLERS - OUTER CONTROL LEVERS - ISO (VAR.334195-336108) (35) - HYDRAULIC SYSTEMS
4
15
13
14
1
5
6
13
3
6
3
1
15
7
14
3
1
14
15
8
2
11
3
5
4
3
8
3
4
9
9
home
90.160.01 01
35.204.0305 01
35.204.0304 01
6
2
5
2
9
10
8
7
12
7
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295559

SUPPORT

3шт.

2

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

6шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

9шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

5

84296420

FLEXIBLE CONTROL

ASSY, Contains Ref. 6, 7

3шт.

6

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

3шт.

7

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

3шт.

8

84302881

PIN,16.2mm OD x 49.5mm L

3шт.

9

47056482

KNOB

3шт.

10

47057199

IDEOGRAM

1шт.

11

47057200

IDEOGRAM

1шт.

12

47057201

IDEOGRAM

1шт.

13

84324148

LEVER

3шт.

14

10125574

CLAMP,13mm

3шт.

15

12575411

LOCK NUT,M6 x 1, Cl 8

3шт.
