(35.204.0101) - 2 REAR CONTROL VALVES WITH 4 COUPLERS - OUTER CONTROL LEVERS (VAR.334107-334108 / 743569; VAR.333195)

Запчасти Case IH FARMALL 65C (35.204.0101) - 2 REAR CONTROL VALVES WITH 4 COUPLERS - OUTER CONTROL LEVERS (VAR.334107-334108 / 743569; VAR.333195) (35) - HYDRAULIC SYSTEMS

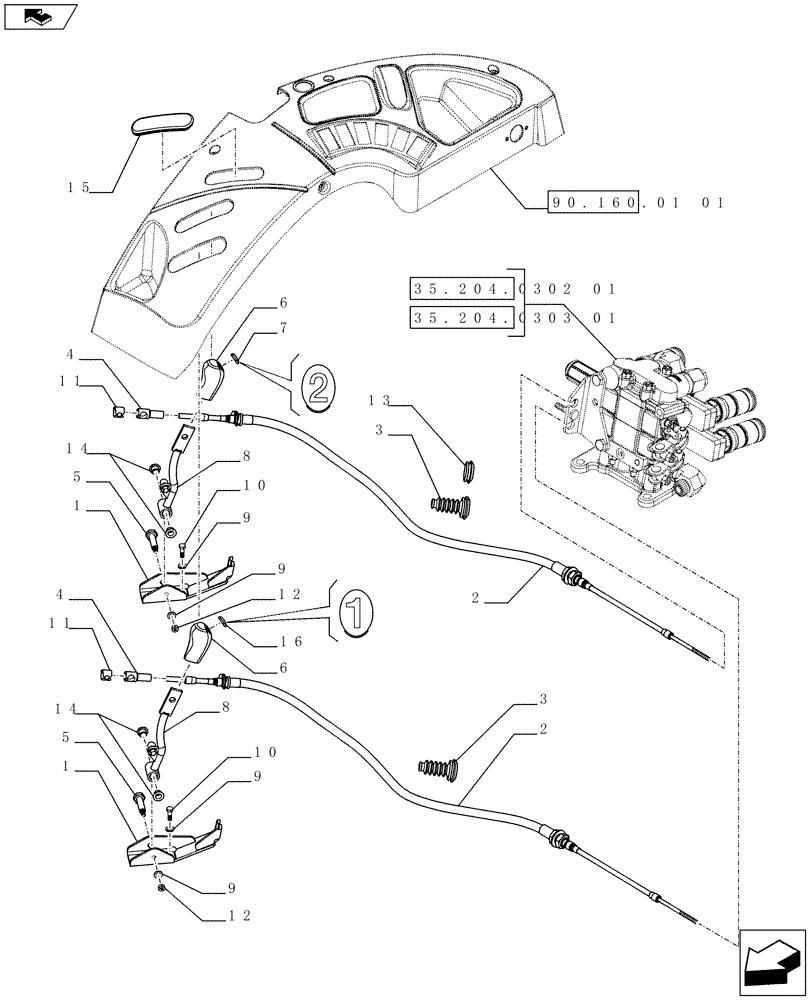

Схема запчастей Case IH FARMALL 65C - (35.204.0101) - 2 REAR CONTROL VALVES WITH 4 COUPLERS - OUTER CONTROL LEVERS (VAR.334107-334108 / 743569; VAR.333195) (35) - HYDRAULIC SYSTEMS
5
6
14
15
10
9
6
8
12
8
13
9
3
4
1
2
7
3
5
11
home
90.160.01 01
35.204.0303 01
35.204.0302 01
12
11
1
2
4
16
9
10
9
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295559

SUPPORT

2шт.

2

84296420

FLEXIBLE CONTROL

ASSY, Contains Ref. 3, 4

2шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

2шт.

4

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

2шт.

5

84302881

PIN,16.2mm OD x 49.5mm L

2шт.

6

47056482

KNOB

2шт.

7

47057200

IDEOGRAM

1шт.

8

84324148

LEVER

2шт.

9

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

6шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

11

10125574

CLAMP,13mm

2шт.

12

12575411

LOCK NUT,M6 x 1, Cl 8

2шт.

13

81862738

PLUG,M38 x 28 x 5mm

1шт.

14

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

4шт.

15

84354391

PLUG,25.5mm x 104mm Hole

1шт.

16

47057199

IDEOGRAM

1шт.
