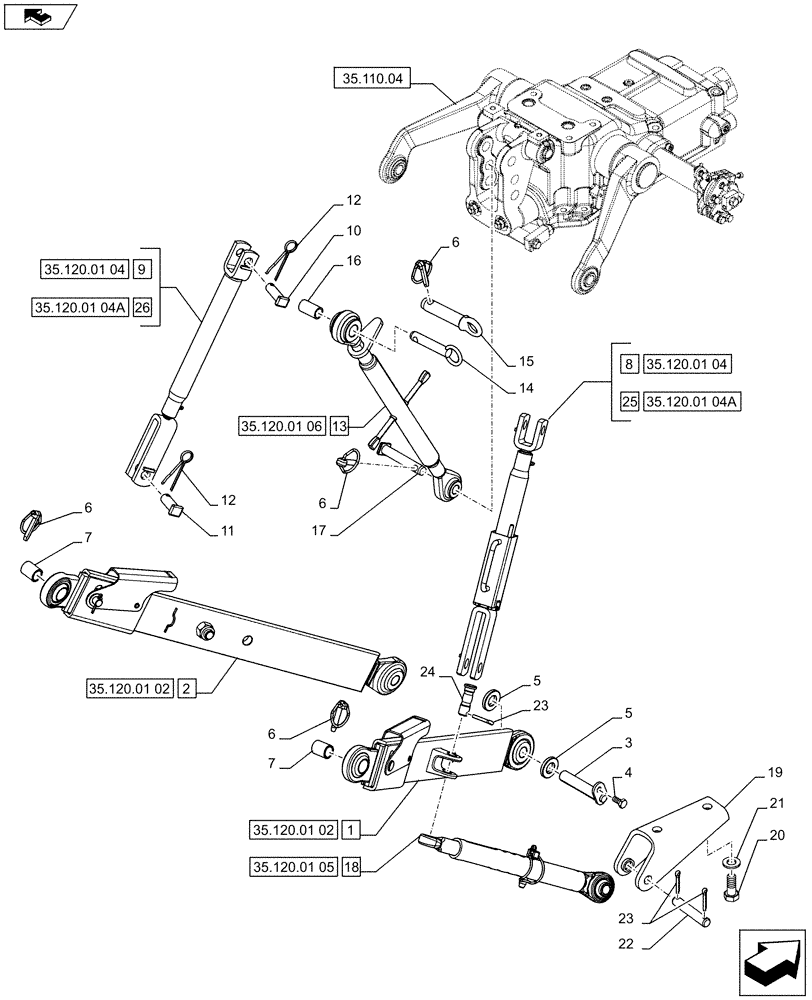

Запчасти Case IH FARMALL 65C (35.120.0102) - FLEXIBLE LINKS WITH TELESCOPIC STABILIZERS - LINK AND ARMS - ISO (VAR.334953 / 743598) (35) - HYDRAULIC SYSTEMS

1

84209182

LIFT ARM

ASSY, RH

1шт.

2

84221752

LIFT ARM

ASSY, LH

1шт.

3

84229215

PIN

2шт.

4

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

5

87738498

SPACER

4шт.

6

5166585

LOCK PIN,11mm OD

4шт.

7

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

2шт.

8

84409533

LIFTING ROD

ASSY, RH, Years: -01-AUG-11

1шт.

9

84409535

LIFTING ROD

ASSY, LH, Years: -01-AUG-11

1шт.

10

84231209

HEADED PIN

UPPER, Years: -01-AUG-11

2шт.

10

84532195

HEADED PIN

, Start Year: 02-AUG-11

1шт.

11

84231165

HEADED PIN,20mm OD x 58.5mm L

LOWER

2шт.

12

5112606

COTTER PIN,2.5mm OD x 66.5mm L

4шт.

13

84409537

STRUT

ASSY

1шт.

14

561831

PIN,19mm OD x 100mm L

1шт.

15

822483

PIN,25.5mm OD x 137mm L

1шт.

16

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

1шт.

17

87738504

PIN

1шт.

18

84204069

STABILIZER

ASSY

2шт.

19

84231654

U-BRACKET

2шт.

20

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

21

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

22

5125861

PIN,19mm OD x 105mm L

2шт.

23

10798301

COTTER PIN,M6.3 x 36

6шт.

24

47133051

PIN,20mm OD x 59mm L

2шт.

25

84497524

LIFTING ROD

ASSY, RH, Start Year: 02-AUG-11

1шт.

26

84497531

LIFTING ROD

ASSY, LH, Start Year: 02-AUG-11

1шт.
