(35.120.0101[05]) - QUICK COUPLING FOR THIRD-LINK SPRAG - BREAKDOWN (VAR.332953)

Запчасти Case IH FARMALL 65C (35.120.0101[05]) - QUICK COUPLING FOR THIRD-LINK SPRAG - BREAKDOWN (VAR.332953) (35) - HYDRAULIC SYSTEMS

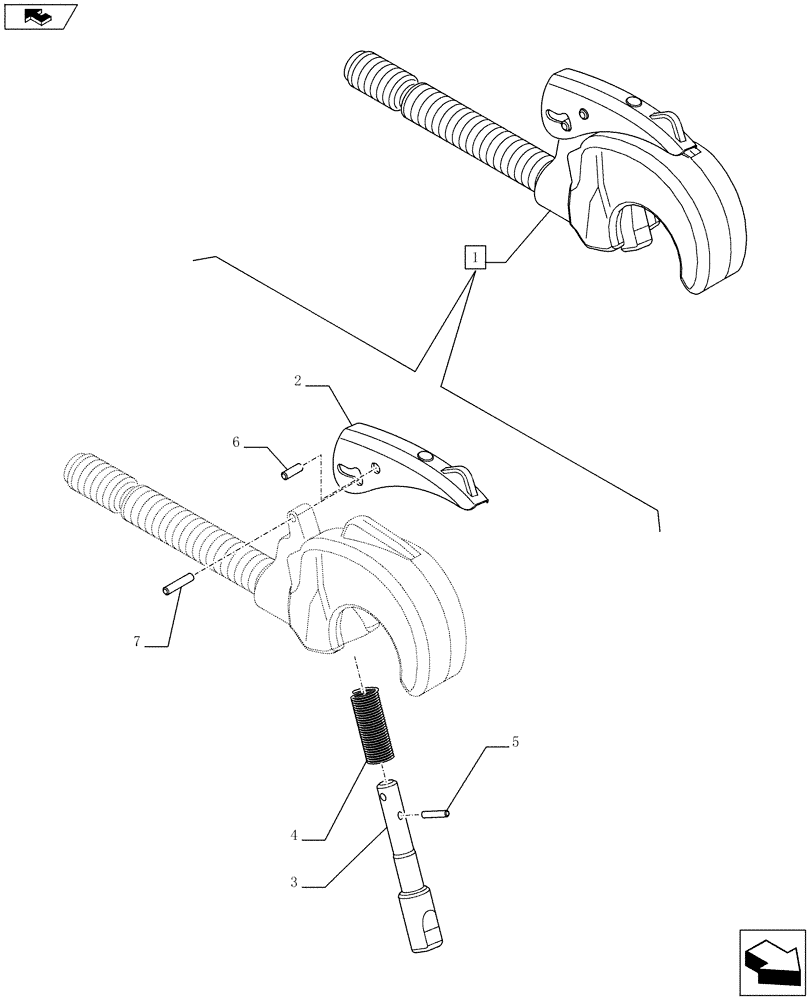

Схема запчастей Case IH FARMALL 65C - (35.120.0101[05]) - QUICK COUPLING FOR THIRD-LINK SPRAG - BREAKDOWN (VAR.332953) (35) - HYDRAULIC SYSTEMS
5
7
1
3
2
6
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266135

HOOK

ASSY, Contains Ref. 2-7

1шт.

2

84277548

LEVER

1шт.

3

84277546

PIN,20mm OD x 110mm L

1шт.

4

84277549

SPRING

1шт.

5

440435

ROLL PIN,M5 x 24, Slotted

1шт.

6

87016718

LOCK PIN,M6 x 24, Slotted

1шт.

7

412155

LOCK PIN,6mm OD x 20mm L, Slotted

1шт.
