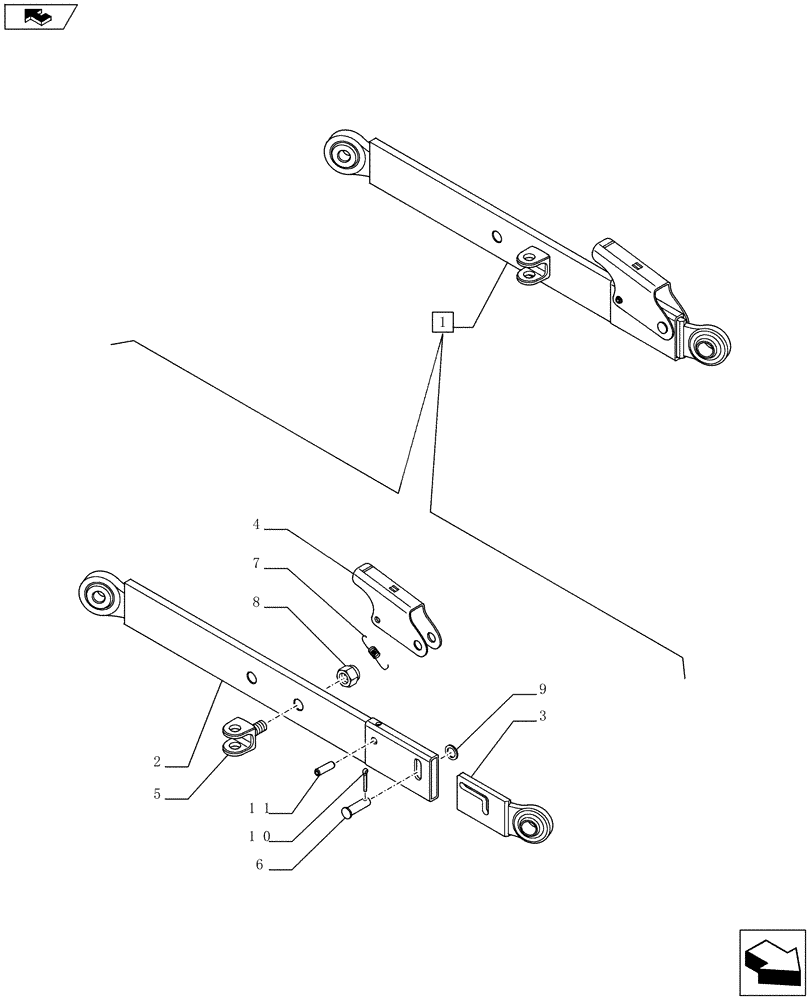

Запчасти Case IH FARMALL 65C (35.120.01[02]) - LIFT ARM - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

84209182

LIFT ARM

ASSY, RH, Contains Ref. 2-11

1шт.

1

84221752

LIFT ARM

ASSY, LH, Contains Ref. 2-11

1шт.

2

84266823

LIFT ARM

RH

1шт.

2

84267065

LIFT LINK END ASSY

LH

1шт.

3

84267028

LIFT LINK END ASSY

RH

1шт.

3

84267030

LIFT ARM

LH

1шт.

4

86402627

COVER

1шт.

5

84266772

YOKE

1шт.

6

86400412

CLEVIS PIN,15.88mm OD x 63mm L

1шт.

7

86532826

SPRING,Extension, 60.7mm L

1шт.

8

12575111

LOCK NUT,M20 x 1.5, Cl 8

1шт.

9

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

11

14610270

LOCK PIN,M10 x 45, Slotted

1шт.
