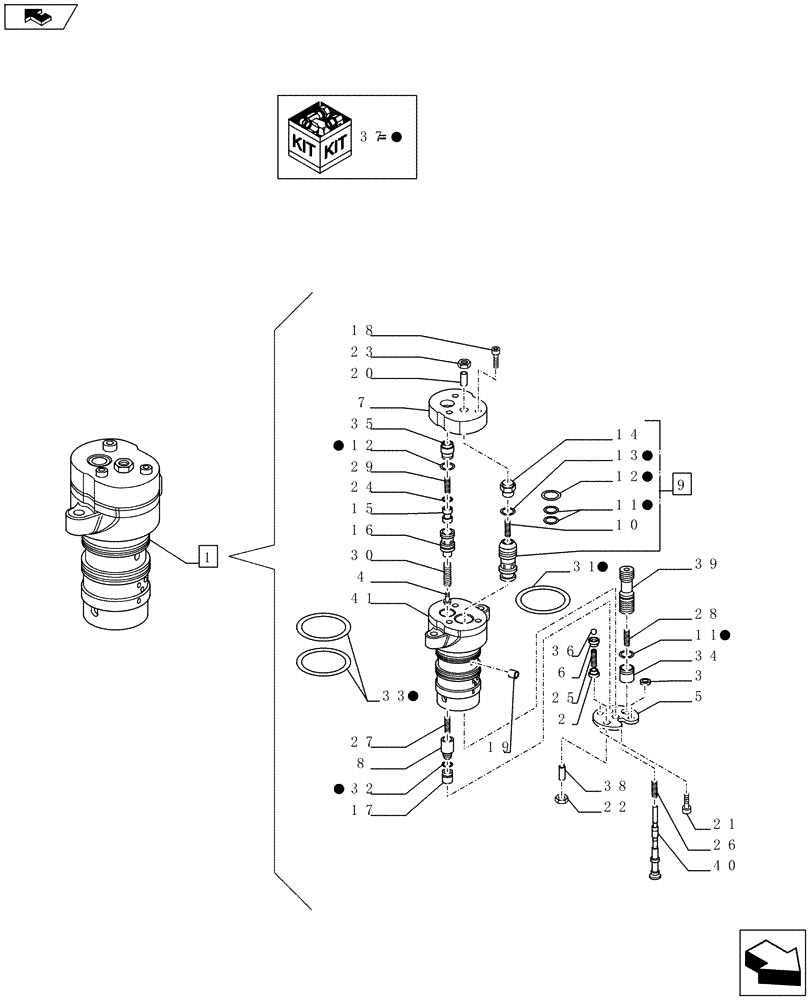

Запчасти Case IH FARMALL 65C (35.114.02[02]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

84425908

CONTROL VALVE

ASSY, Contains Ref. 2-41

1шт.

2

84188598

SPACER

1шт.

3

84188592

SPACER

3шт.

4

84188580

VALVE

1шт.

5

84188593

PLATE

1шт.

6

84188571

SPACER

1шт.

7

84188588

COVER

1шт.

8

84188594

VALVE

1шт.

9

84425911

DRAIN VALVE

ASSY, Contains Ref. 10-14

1шт.

10

84263733

SPRING

1шт.

11

84293794

O-RING,1.78mm Thk x 12.42mm ID

3шт.

12

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

13

84263735

O-RING,11.1mm ID x 1.78 Thk

1шт.

14

84263736

PLUG

1шт.

15

84263708

PILOT VALVE

1шт.

16

84263709

VALVE SEAT

1шт.

17

84188595

VALVE SEAT

1шт.

18

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

M6 x 25

3шт.

19

84188572

SCREW, 2.5mm DIA

1шт.

20

87710816

DOWEL,M8 x 16mm

1шт.

21

14433137

HEX SOC SCREW,M6 x 18mm, Cl 10.9

3шт.

22

84188520

NUT

D=8

1шт.

23

84188546

NUT,M8 DIN 936

1шт.

24

84263714

WASHER

1шт.

25

84188574

SPRING

1шт.

26

84188569

SPRING

1шт.

27

84188597

SPRING

1шт.

28

84188590

SPRING

1шт.

29

84263716

SPRING

1шт.

30

84263718

SPRING

1шт.

31

84263721

O-RING,58.74mm ID x 3.53mm Thk

1шт.

32

84263723

O-RING,1.78mm Thk x 8.73mm ID

1шт.

33

84263725

O-RING,48.89mm ID x 2.62mm Thk

2шт.

34

84188591

PLUG

1шт.

35

84263729

PLUG

1шт.

36

84188578

BALL,9/32", 7.144mm DIA

1шт.

37

84263732

SEAL KIT

ASSY, Contains Ref. 11-13, 32, 33

1шт.

38

879-50820

SET SCREW,Hex Skt, M8 x 20mm, Dog Pt

M8 x 20

1шт.

39

NSS

NOT SOLD SEPARAT

1шт.

40

NSS

NOT SOLD SEPARAT

1шт.

41

NSS

NOT SOLD SEPARAT

1шт.
