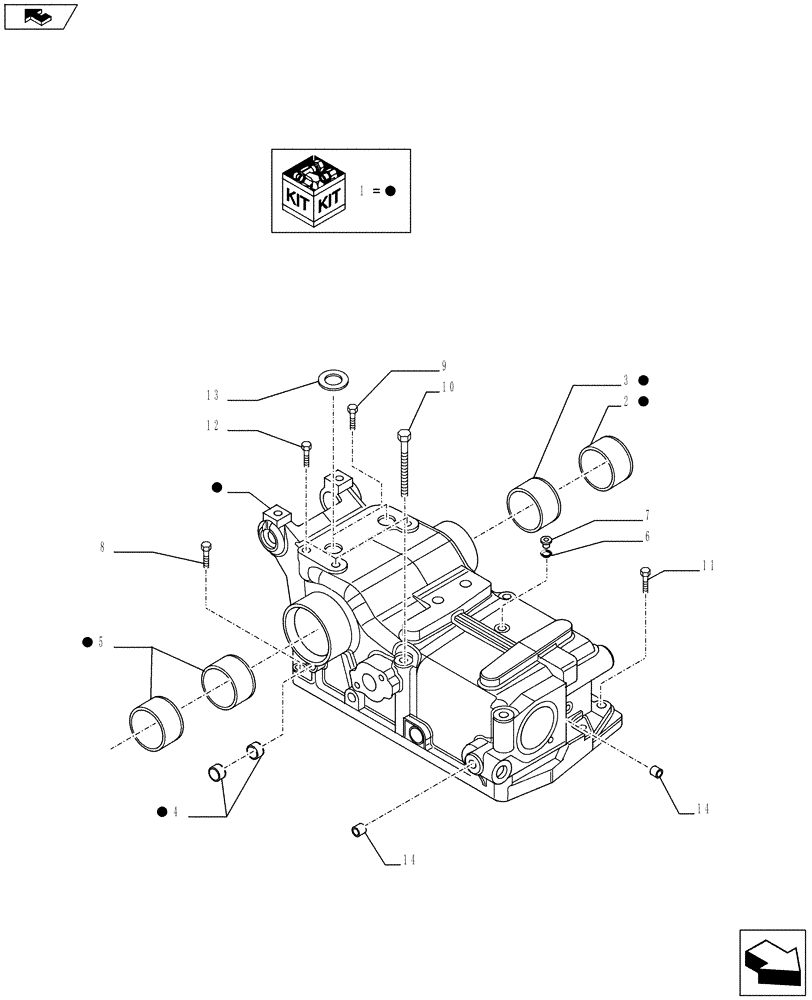

Запчасти Case IH FARMALL 65C (35.110.04[01]) - HYDRAULIC LIFT - COVER - END YR 12-SEP-2012 (35) - HYDRAULIC SYSTEMS

1

84262499

BODY

ASSY, Contains Ref. 2-5

1шт.

2

84188506

BUSHING

1шт.

3

84188507

BUSHING

1шт.

4

84262500

BUSHING

2шт.

5

84188509

BUSHING

2шт.

6

10284460

WASHER,M10.2 x 16 x 1.5, Copper

1шт.

7

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

8

11234731

SCREW,Hex, M10 x 1.25 x 45mm, Cl 10.9

2шт.

9

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

10

15541931

BOLT,Hex, M12 x 1.25 x 130mm, Cl 10.9

2шт.

11

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.

12

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

3шт.

13

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

1шт.
