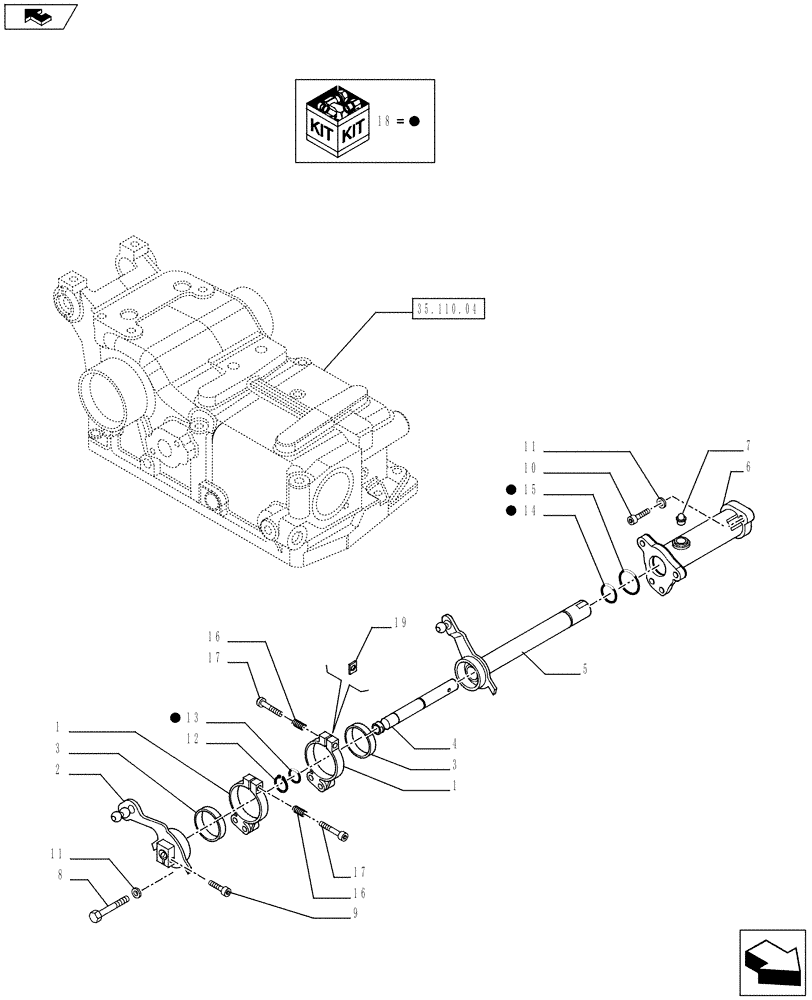

Запчасти Case IH FARMALL 65C (35.110.01[03]) - HYDRAULIC LIFT CONTROLS - SHAFT AND LEVERS (35) - HYDRAULIC SYSTEMS

1

84188557

HUB

2шт.

2

84263004

TRIP ARM

1шт.

3

84188558

CLUTCH

2шт.

4

84263003

CONTROL SHAFT

1шт.

5

84263005

TRIP ARM

1шт.

6

84263006

SUPPORT

1шт.

7

13408411

LUBE NIPPLE,90 Degree , M10 x1

1шт.

8

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

9

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

M8 x 30

1шт.

10

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

M8 x 25

2шт.

11

87016619

LOCK WASHER,M8

D=8

4шт.

12

84188564

SNAP RING

1шт.

13

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

14

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

15

14463180

O-RING,0.921" ID x 0.139" Width

1шт.

16

84188566

SPRING

2шт.

17

14305873

SCREW,M6 x 40mm, Cl 12.9

2шт.

18

84262551

SEAL KIT

ASSY, Contains Ref. 13-15

1шт.

See Also Group 35.110.01 pag.01, 35.110.02 and 35.110.03 pag.01

1шт.

19

84357659

RUBBER SEAL

2шт.
