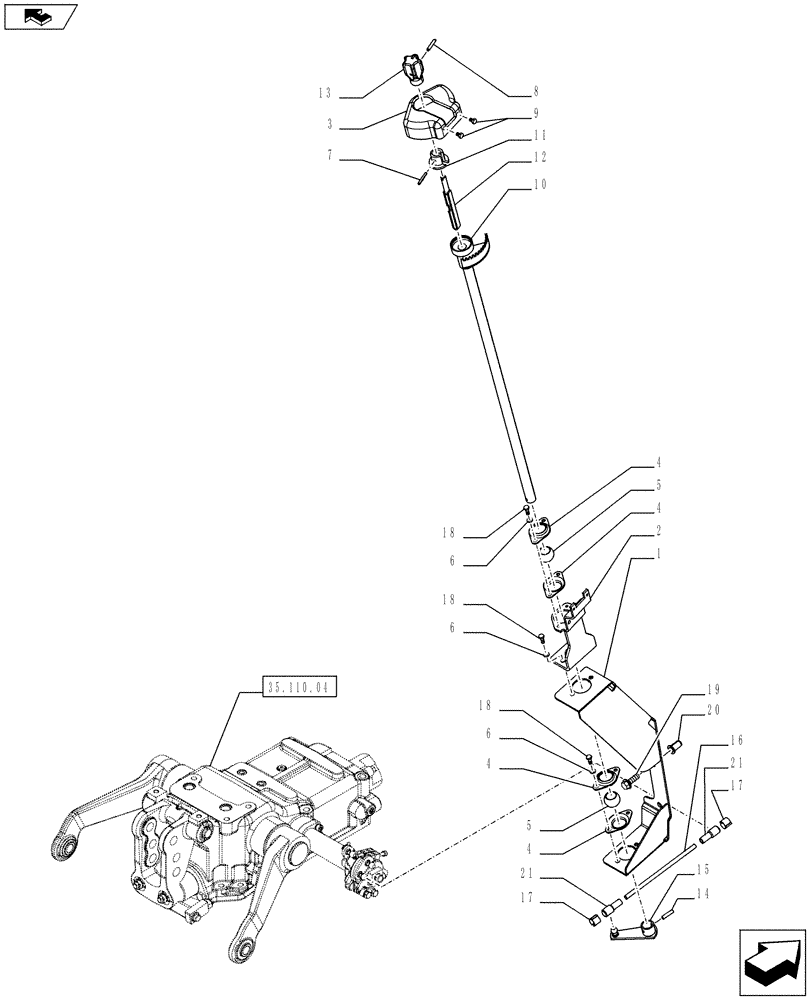

Запчасти Case IH FARMALL 65C (35.108.03) - EXTERNAL HYDRAULIC LIFT CONTROL LEVER - W/CAB (VAR.332035) (35) - HYDRAULIC SYSTEMS

1

84316171

BRACKET

1шт.

2

84333425

BRACKET

1шт.

3

5171028

COVER

1шт.

4

5110722

CUP

4шт.

5

5127536

BUSHING,20.5mm ID x 32mm OD

2шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

7

14164470

LOCK PIN,M4 x 32, Slotted

1шт.

8

14601374

LOCK PIN,M5 x 30, Slotted

1шт.

9

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

M6 x 10

2шт.

10

84335015

SUPPORT TUBE

1шт.

11

5171002

HUB

1шт.

12

5189838

LEVER

1шт.

13

5144119

KNOB

1шт.

14

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

15

84338359

LEVER

1шт.

16

84338304

THREADED TIE-ROD

1шт.

17

10125574

CLAMP,13mm

2шт.

18

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

19

9804262

BOLT,M10 x 39.2mm, Cl 8.8

M10 x 30

3шт.

20

84214045

RIVET,Flat, M10 OD x 25.75mm L

3шт.

21

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

2шт.
