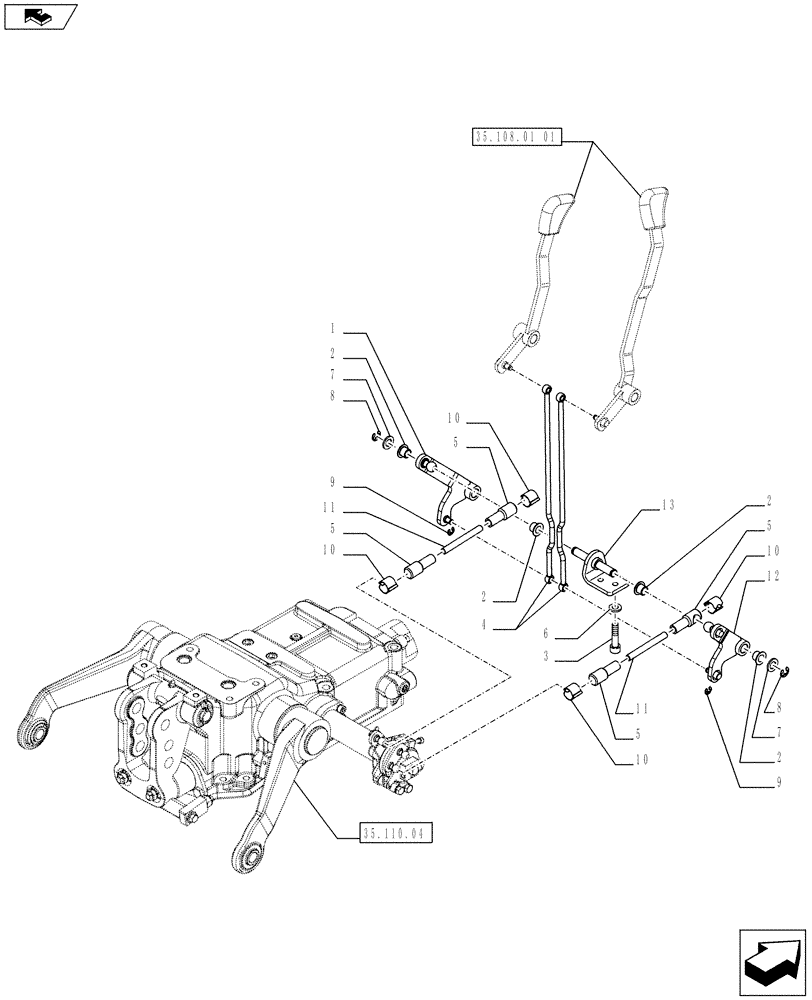

Запчасти Case IH FARMALL 65C (35.108.01[02]) - HYDRAULIC LIFT CONTROLS - HANDLE AND LEVERS (35) - HYDRAULIC SYSTEMS

1

84309472

LEVER

1шт.

2

84309424

BUSHING,10mm ID x 12mm OD x 10.0mm L

4шт.

3

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

4

84309505

TIE-ROD

2шт.

5

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

M6 x 16

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

12638604

LOCK WASHER

2шт.

8

11087976

CIRCLIP,Ext., M8, BLO

2шт.

9

11087676

CIRCLIP,M5

2шт.

10

10125574

CLAMP,13mm

4шт.

11

84338315

THREADED TIE-ROD

2шт.

12

84309476

LEVER

1шт.

13

84309489

BRACKET

1шт.
