(35.100.04[03]) - HYDRAULIC LIFT SYSTEM - LIFT DELIVERY PIPE

Запчасти Case IH FARMALL 65C (35.100.04[03]) - HYDRAULIC LIFT SYSTEM - LIFT DELIVERY PIPE (35) - HYDRAULIC SYSTEMS

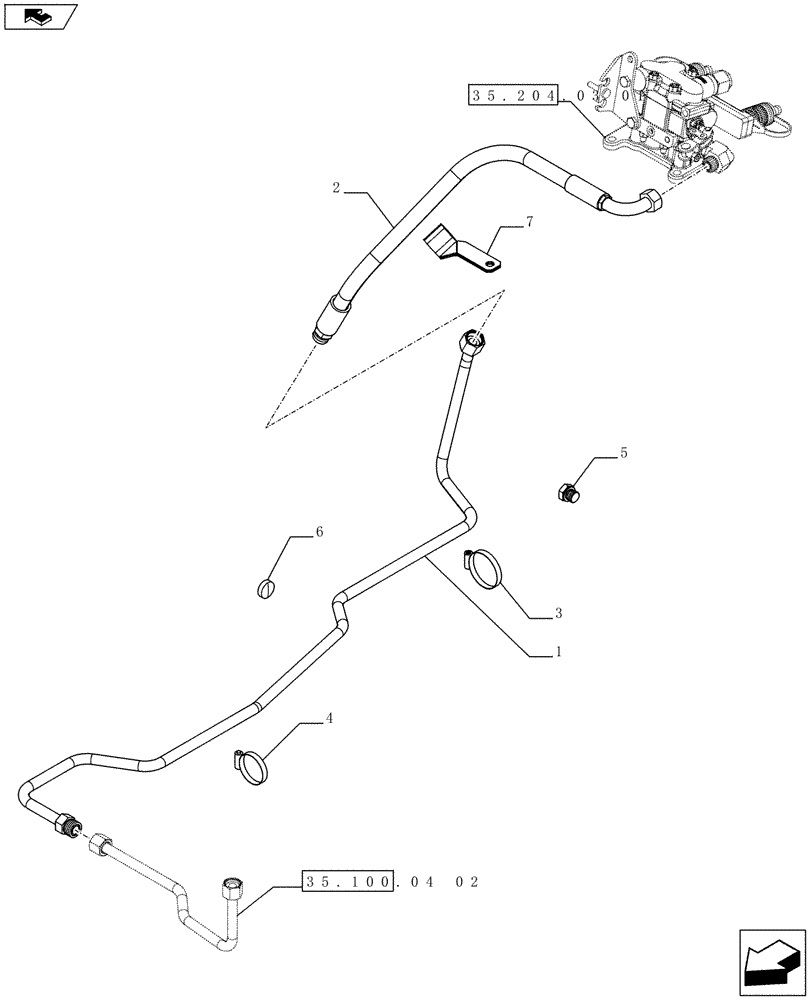

Схема запчастей Case IH FARMALL 65C - (35.100.04[03]) - HYDRAULIC LIFT SYSTEM - LIFT DELIVERY PIPE (35) - HYDRAULIC SYSTEMS
2
5
7
4
3
6
1
home
35.204.03 01
35.100.04 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84413397

RIGID TUBE

1шт.

2

84233828

FLEXIBLE HOSE

Delivery Lift

1шт.

3

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

4

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

1шт.

5

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

6

14329101

PLUG,M30, Tapered

1шт.

7

84309465

BRACKET

1шт.
