Запчасти Case IH FARMALL 65C (35.100.04[01]) - HYDRAULIC LIFT SYSTEM - OIL FILTER, PIPES AND SUPPORT (35) - HYDRAULIC SYSTEMS

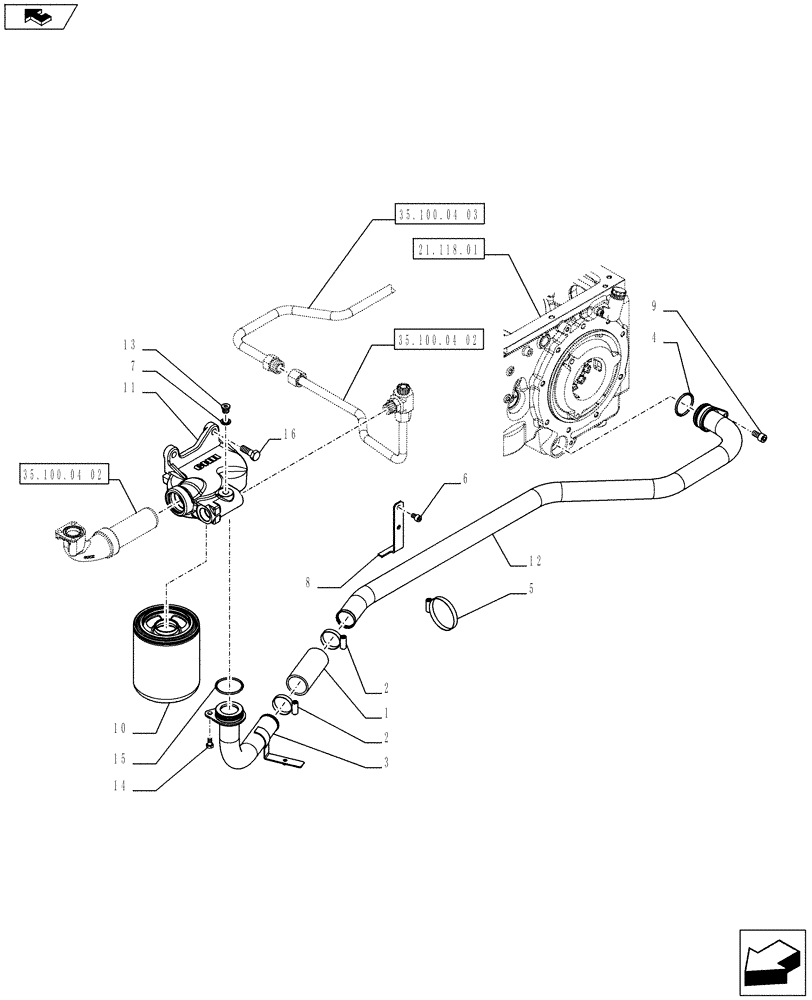

Схема запчастей Case IH FARMALL 65C - (35.100.04[01]) - HYDRAULIC LIFT SYSTEM - OIL FILTER, PIPES AND SUPPORT (35) - HYDRAULIC SYSTEMS
2
4
10
3
14
12
2
15
8
7
5
16
21.118.01
11
home
35.100.04 02
35.100.04 02
35.100.04 03
13
9
6
1

Артикул

Название

Примечание

Количество

1

84233949

HOSE

1шт.

2

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

2шт.

3

84232836

RIGID TUBE

1шт.

4

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

5

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

6

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

7

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

8

84281804

BRACKET

1шт.

9

14307330

HEX SOC SCREW,M10 x 1.25 x 20mm, Cl 10.9

1шт.

10

84257511

HYDRAULIC OIL FILTER,138.00mm OD

1шт.

11

87392924

SUPPORT

1шт.

12

84233944

TUBE

1шт.

13

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

15

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

16

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

Выбрано товаров: 16
