(35.100.03) - LIFTER OIL PAN AND RELATED PARTS

Запчасти Case IH FARMALL 65C (35.100.03) - LIFTER OIL PAN AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

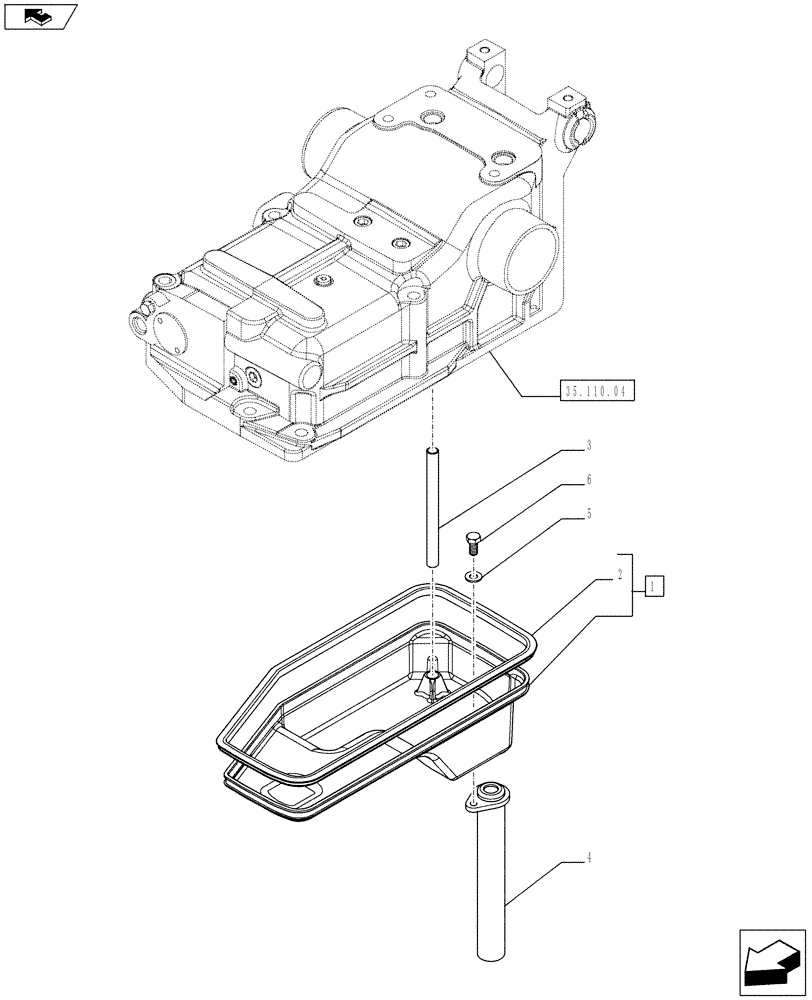

Схема запчастей Case IH FARMALL 65C - (35.100.03) - LIFTER OIL PAN AND RELATED PARTS (35) - HYDRAULIC SYSTEMS
5
3
1
2
35.110.04
4
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84232241

PAN

ASSY, Contains Ref. 2

1шт.

2

84401245

SEAL

1шт.

3

84232237

PIPE

1шт.

4

84232238

PIPE

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.
