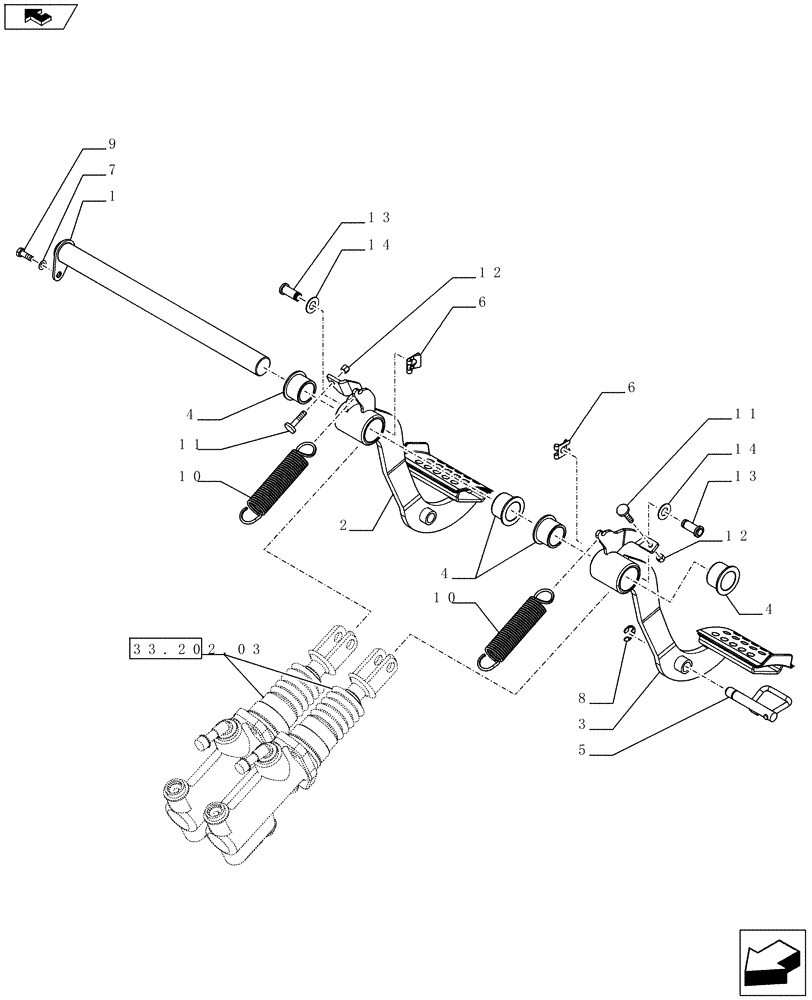

Запчасти Case IH FARMALL 65C (33.202.04[01]) - BRAKE PEDALS - END YR 23-JUN-2014 (33) - BRAKES & CONTROLS

1

84218395

PIN,25mm OD x 348.5mm L

1шт.

2

84390503

PEDAL

ASSY, RH, Contains Ref. 4

1шт.

3

84390507

PEDAL

ASSY, LH, Contains Ref. 4

1шт.

4

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

2шт.

5

84392817

PIN,12mm OD x 80mm L

1шт.

6

11064176

CLIP,M10 x 8mm

2шт.

7

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

8

11088180

CIRCLIP,M11, Stainless

1шт.

9

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

10

84393252

SPRING,Extension, 26mm OD, 126mm L

2шт.

11

84280664

SCREW,M6 x 26mm L

2шт.

12

12574221

NUT,M6 x 1, Cl 10

2шт.

13

5111590

PIN,10mm OD x 28mm L

2шт.

14

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

1шт.
