(31.110.0301) - SWIVEL TRAILER HITCH (GERMANY) WITH SLIDER SUPPORT - POWER TAKE-OFF SHAFT COVER - ISO (VAR.330772-330897)

Запчасти Case IH FARMALL 65C (31.110.0301) - SWIVEL TRAILER HITCH (GERMANY) WITH SLIDER SUPPORT - POWER TAKE-OFF SHAFT COVER - ISO (VAR.330772-330897) (31) - IMPLEMENT POWER TAKE OFF

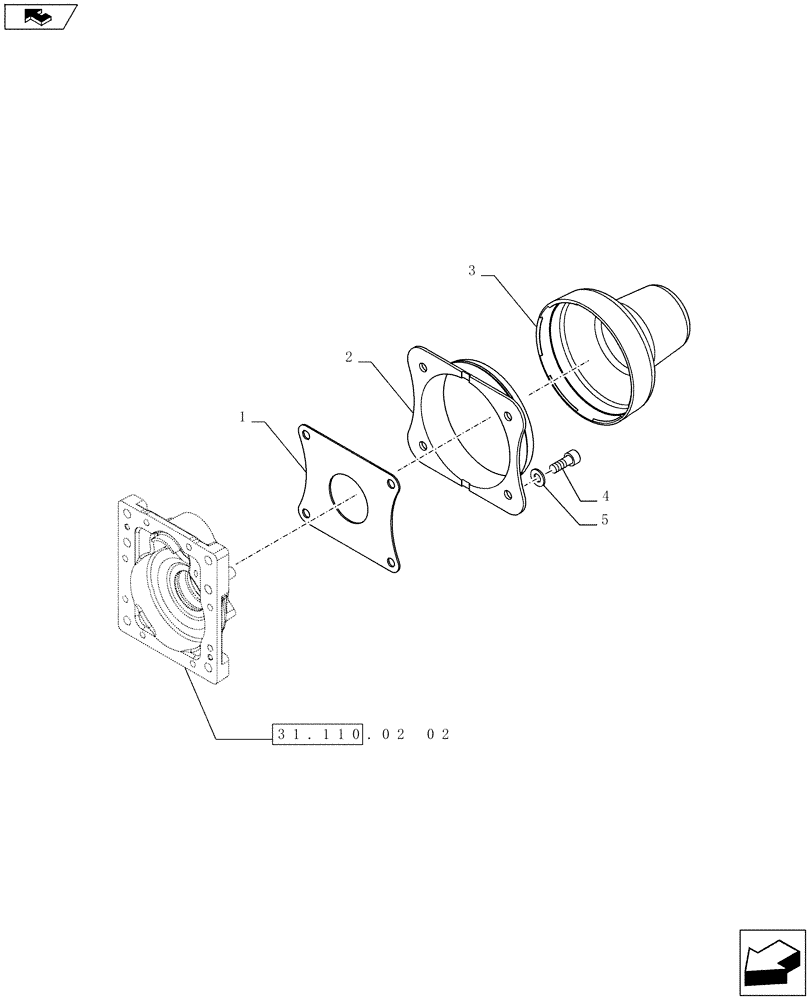

Схема запчастей Case IH FARMALL 65C - (31.110.0301) - SWIVEL TRAILER HITCH (GERMANY) WITH SLIDER SUPPORT - POWER TAKE-OFF SHAFT COVER - ISO (VAR.330772-330897) (31) - IMPLEMENT POWER TAKE OFF
4
2
3
1
5
home
31.110.02 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5104039

GUARD

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

47125899

COVER,109mm L

1шт.

4

14359221

HEX SOC SCREW,M8 x 22mm, Cl 8.8, Full Thd

4шт.

5

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 5
