(31.110.03) - FIXED TRAILER HITCH CAT.C WITH SLIDER SUPPORT - POWER TAKE-OFF SHAFT COVER - ISO (VAR.330928)

Запчасти Case IH FARMALL 65C (31.110.03) - FIXED TRAILER HITCH CAT.C WITH SLIDER SUPPORT - POWER TAKE-OFF SHAFT COVER - ISO (VAR.330928) (31) - IMPLEMENT POWER TAKE OFF

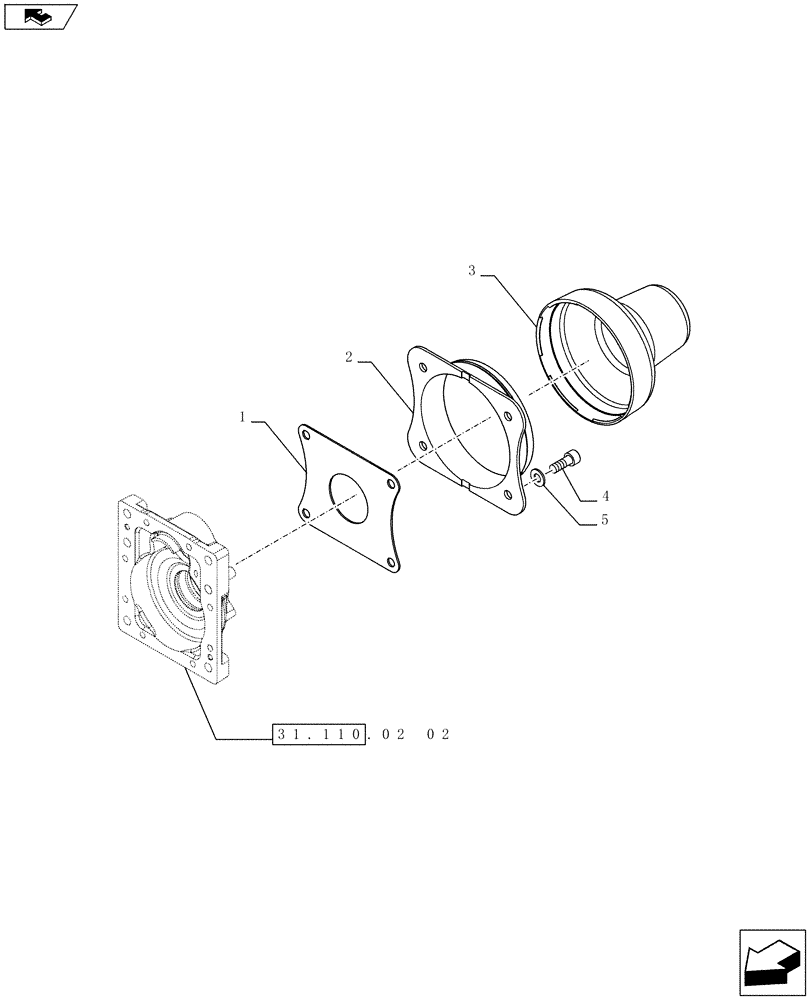

Схема запчастей Case IH FARMALL 65C - (31.110.03) - FIXED TRAILER HITCH CAT.C WITH SLIDER SUPPORT - POWER TAKE-OFF SHAFT COVER - ISO (VAR.330928) (31) - IMPLEMENT POWER TAKE OFF
3
31.110.02 02
home
4
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5104039

GUARD

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

47125899

COVER,109mm L

1шт.

4

14359221

HEX SOC SCREW,M8 x 22mm, Cl 8.8, Full Thd

4шт.

5

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 5
