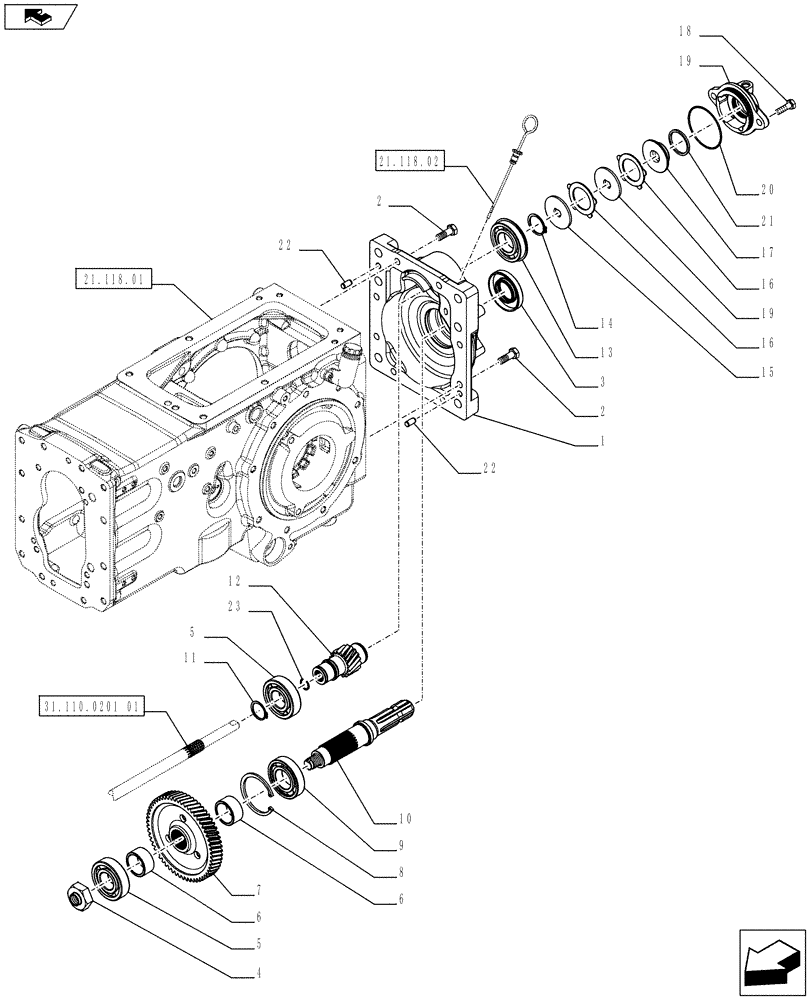

Запчасти Case IH FARMALL 65C (31.110.0201[02]) - POWER TAKE-OFF (540 RPM) FOR POWER SHUTTLE - COVER, SHAFTS AND GEARS (VAR.332808 / 743565) (31) - IMPLEMENT POWER TAKE OFF

1

84226358

COVER

1шт.

2

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

8шт.

3

5125897

OIL SEAL,40mm ID x 80mm OD x 12mm Thk

1шт.

4

5159091

RING NUT

1шт.

5

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

2шт.

6

84226364

SPACER

2шт.

7

84226363

GEAR

1шт.

ISO Market Models Only

1шт.

7

84236754

GEAR

1шт.

NAR Market, 75C Model Only

1шт.

8

5164109

CIRCLIP

1шт.

9

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

10

84226361

PTO SHAFT

1шт.

11

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

12

84226360

PTO SHAFT

1шт.

ISO Market Models Only

1шт.

12

84236753

PTO SHAFT

1шт.

NAR Market, 75C Model Only

1шт.

13

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

14

11068876

SNAP RING,M40, Ext

1шт.

15

84239847

DISC

2шт.

16

84239848

DISC

2шт.

17

84239846

PISTON

1шт.

18

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

19

84235044

COVER

1шт.

20

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

21

84239850

SEALING RING,44.8mm ID x 51.6mm OD x 3.4mm Thk

SEALRING

1шт.

22

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

23

13420776

RING

1шт.
