Запчасти Case IH FARMALL 65C (31.110.02[02]) - POWER TAKE-OFF (540 RPM) - COVER, SHAFTS AND GEARS (31) - IMPLEMENT POWER TAKE OFF

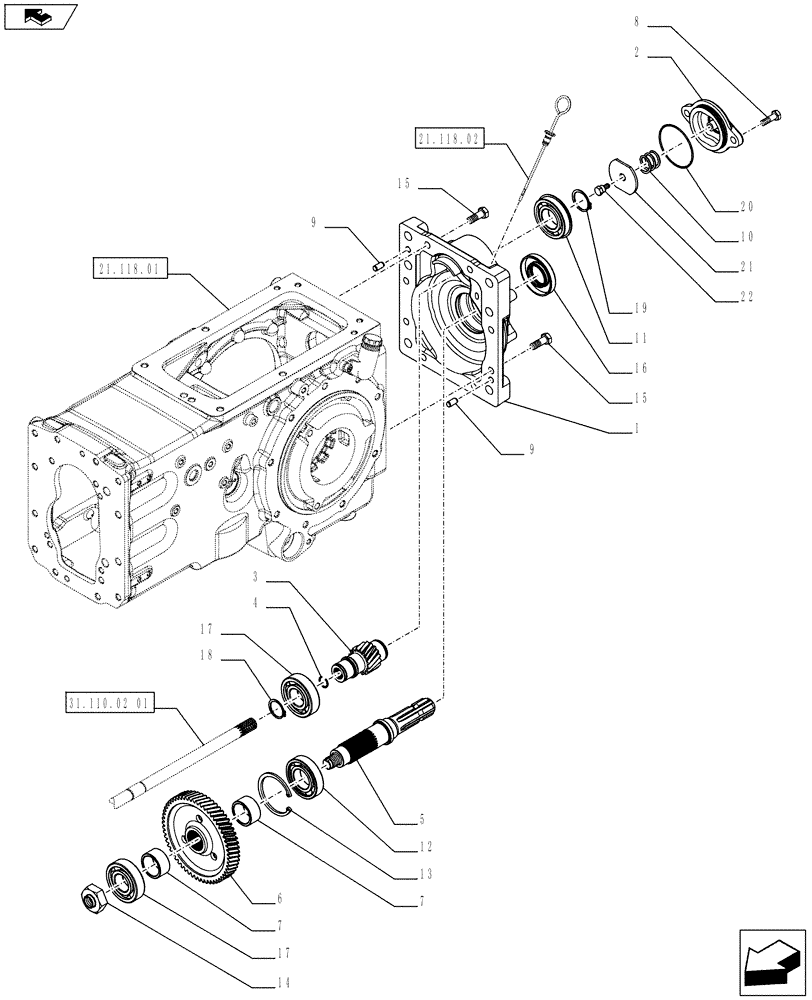

Схема запчастей Case IH FARMALL 65C - (31.110.02[02]) - POWER TAKE-OFF (540 RPM) - COVER, SHAFTS AND GEARS (31) - IMPLEMENT POWER TAKE OFF
7
6
11
21
1
13
15
3
17
16
10
2
8
14
7
17
4
home
31.110.02 01
15
12
9
21.118.01
21.118.02
22
19
20
5
18
9

Артикул

Название

Примечание

Количество

1

84226358

COVER

1шт.

2

84226359

COVER

1шт.

3

84226360

PTO SHAFT

540 RPM

1шт.

ISO Market Models Only

1шт.

3

84236753

PTO SHAFT

540 RPM

1шт.

NAR Market, 75C Model Only

1шт.

4

13420776

RING

1шт.

5

84226361

PTO SHAFT

1шт.

6

84226363

GEAR

1шт.

ISO Market Models Only

1шт.

6

84236754

GEAR

1шт.

NAR Market, 75C Model Only

1шт.

7

84226364

SPACER

2шт.

8

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

9

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

10

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

11

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

12

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

13

5164109

CIRCLIP

D=80

1шт.

14

5159091

RING NUT

1шт.

15

86642438

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

16

5125897

OIL SEAL,40mm ID x 80mm OD x 12mm Thk

1шт.

17

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

2шт.

18

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

19

370006

SNAP RING,M40, Ext

D=40

1шт.

20

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

21

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

22

47130774

PIN,13.5mm OD x 22mm L

1шт.

Выбрано товаров: 28
