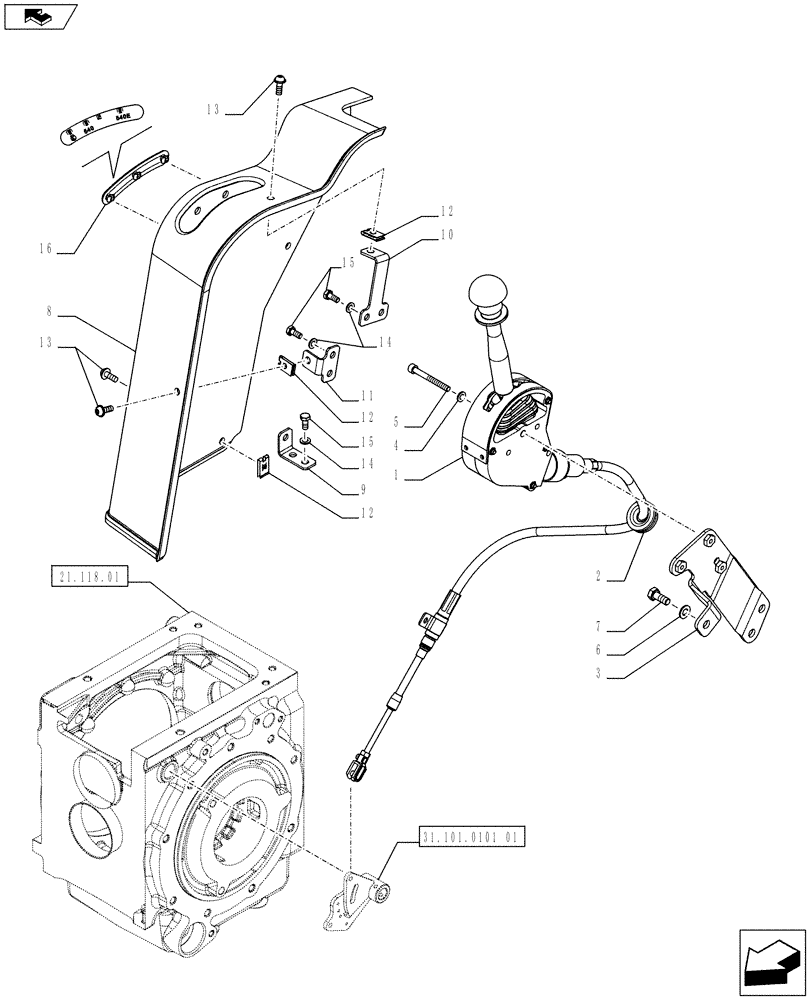

Запчасти Case IH FARMALL 65C (31.101.0202) - PTO CONTROL EXTERNAL LEVER - PTO CONTROLS - L/CAB (VAR.330837-332837-333837 / 743567) (31) - IMPLEMENT POWER TAKE OFF

1

84286487

FLEXIBLE CONTROL

ASSY, Contains Ref. 2

1шт.

Power Take-Off Control External Lever, VAR.330837-332837 (Commercial Feature 743567)

1шт.

1

84310228

FLEXIBLE CONTROL

ASSY, Contains Ref. 2

1шт.

Power Take-Off Control External Lever with Ground Speed, VAR.333837 (Commercial Feature 743567)

1шт.

2

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

3

84410525

BRACKET

1шт.

4

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

3шт.

5

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

3шт.

6

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

8.4 x 16 x 1.6

3шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

3шт.

8

84412738

LINING

LH

1шт.

9

84412124

BRACKET

3шт.

10

84412049

BRACKET

1шт.

11

84412811

BRACKET

1шт.

12

14371774

SPRING NUT,M6, U, 12mm long

5шт.

13

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

5шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

10шт.

15

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

10шт.

16

84395007

DECAL

1шт.
