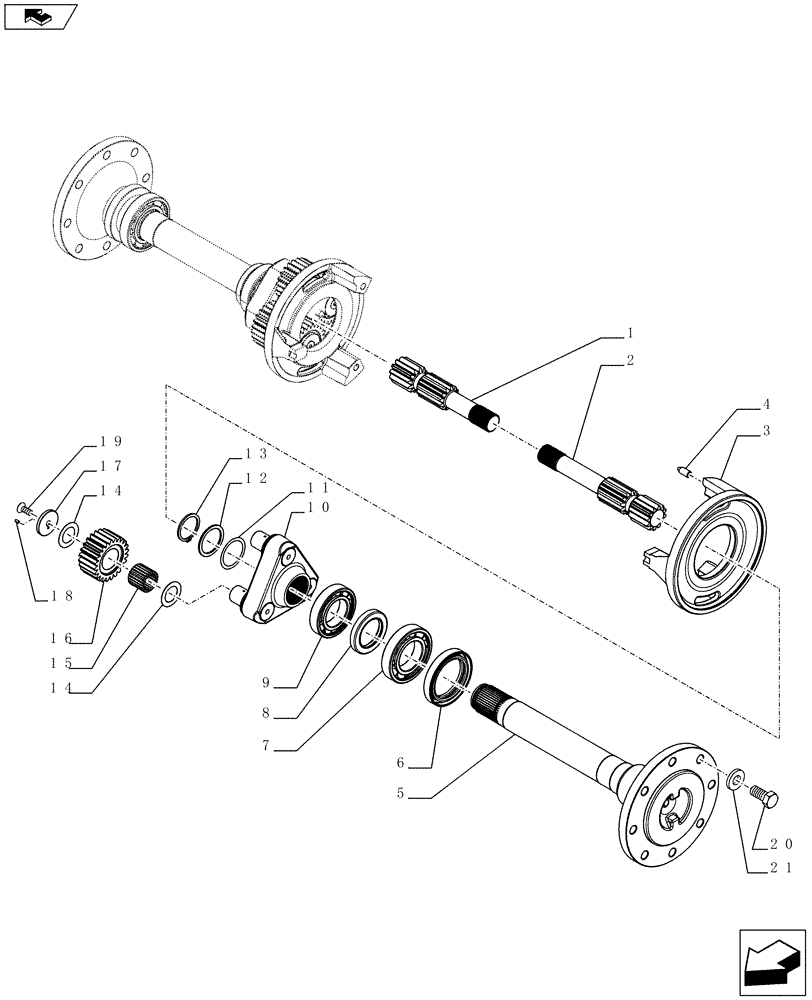

Запчасти Case IH FARMALL 65C (27.120.02) - FINAL DRIVE, GEARS AND SHAFTS (27) - REAR AXLE SYSTEM

1

84379886

SHAFT

RH

1шт.

2

84379885

SHAFT

LH

1шт.

3

84226082

SUPPORT

2шт.

NAR Market, 75C Model Only, L/CAB

1шт.

3

84379501

SUPPORT

2шт.

4

87590370

DOWEL

12 x 30

6шт.

5

84226051

AXLE

2шт.

6

5123370

OIL SEAL,80mm ID x 110mm OD x 16mm Thk

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

8

5111415

OIL SEAL,57mm ID x 85mm OD x 12mm Thk

2шт.

9

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

2шт.

10

84226070

PLANET CARRIER

2шт.

11

87387607

SHIM

2шт.

12

87387605

SPACER

2шт.

13

5138419

SNAP RING,M50

2шт.

14

84253119

THRUST WASHER

50 x 31.9 x 0.8

12шт.

15

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

6шт.

16

84226079

PINION

6шт.

17

87654057

SPACER

6шт.

18

584787

DOWEL

6шт.

19

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

6шт.

20

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

16шт.

21

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
