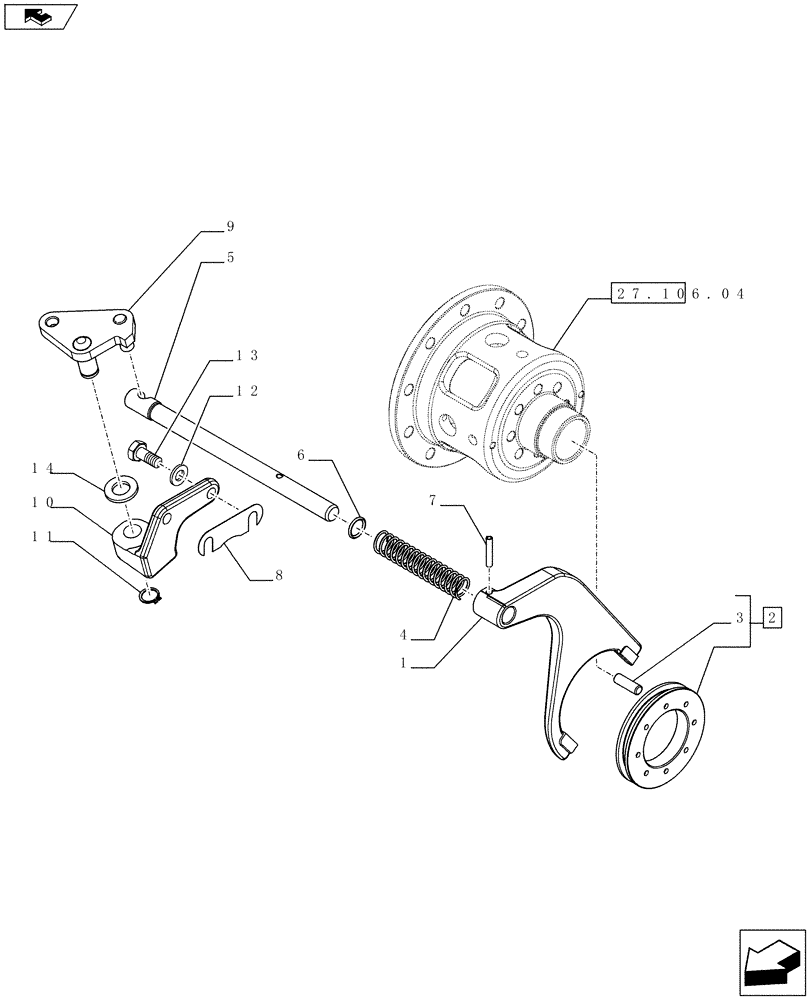

Запчасти Case IH FARMALL 65C (27.110.01) - REAR DIFFERENTIAL LOCKS (27) - REAR AXLE SYSTEM

1

87370465

YOKE

1шт.

2

87370537

SHANK

ASSY, Contains Ref. 3

1шт.

3

87370369

PIN

8шт.

4

87370467

SPRING

1шт.

5

84243387

ROD

1шт.

6

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

7

13907670

ROLL PIN,M5 x 30, Coiled

1шт.

8

5114582

SHIM,25mm OD x 0.5mm Thk

1шт.

9

84247257

LOCK

1шт.

10

5128296

SUPPORT

1шт.

11

300625

SNAP RING,M16, Ext

1шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

13550704

WASHER,16.4mm ID x 30mm OD x 3mm Thk

1шт.
