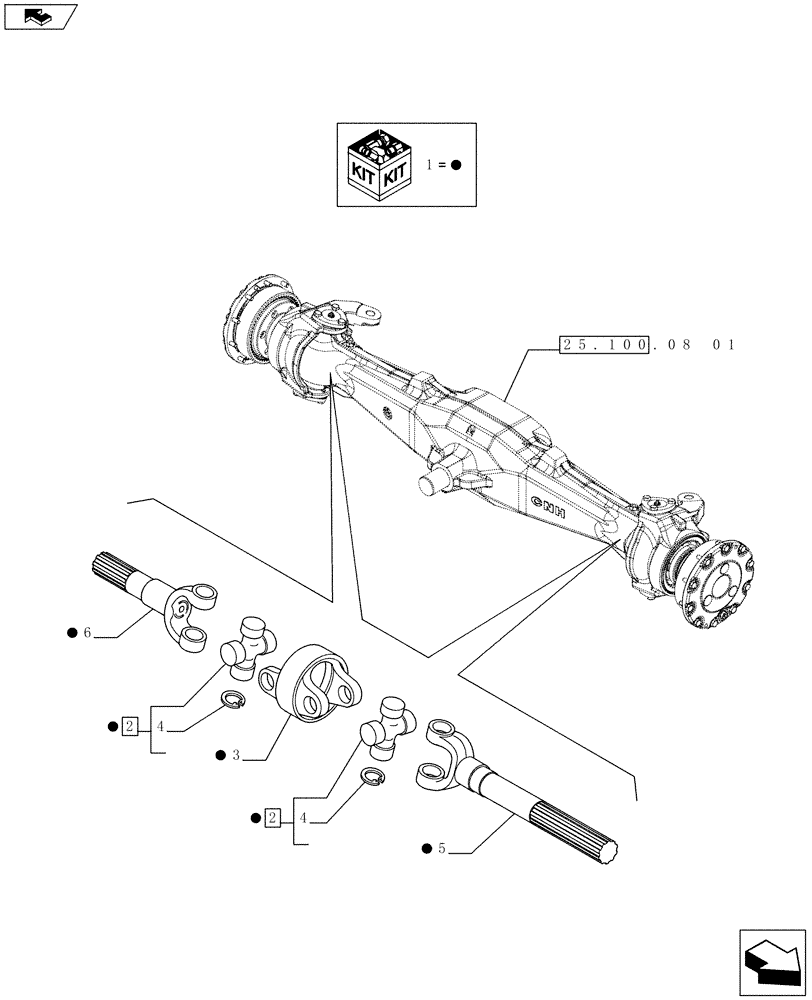

Запчасти Case IH FARMALL 65C (25.108.01[03]) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED - BREAKDOWN (25) - FRONT AXLE SYSTEM
![Схема запчастей Case IH FARMALL 65C - (25.108.01[03]) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED - BREAKDOWN (25) - FRONT AXLE SYSTEM](https://partsell.ru/storage/images/caseih/217758.png)
6
home
3
5
1
1
4
1
25.100.08 01
1
4
1
2
1
2
1
№
Артикул
Название
Примечание
Количество
1
5186652
AXLE-SHAFT, ARTICULA
ASSY, RH, Contains Ref. 2, 3, 5, 6
1шт.
1
5186653
AXLE-SHAFT, ARTICULA
ASSY, LH, Contains Ref. 2, 3, 5, 6
1шт.
2
5191024
SPIDER
ASSY, Contains Ref. 4
4шт.
3
5191027
YOKE
2шт.
4
5191025
LOCKING RING
16шт.
5
5191421
YOKE
RH
1шт.
5
5191420
YOKE
LH
1шт.
6
5191412
SHAFT
2шт.
