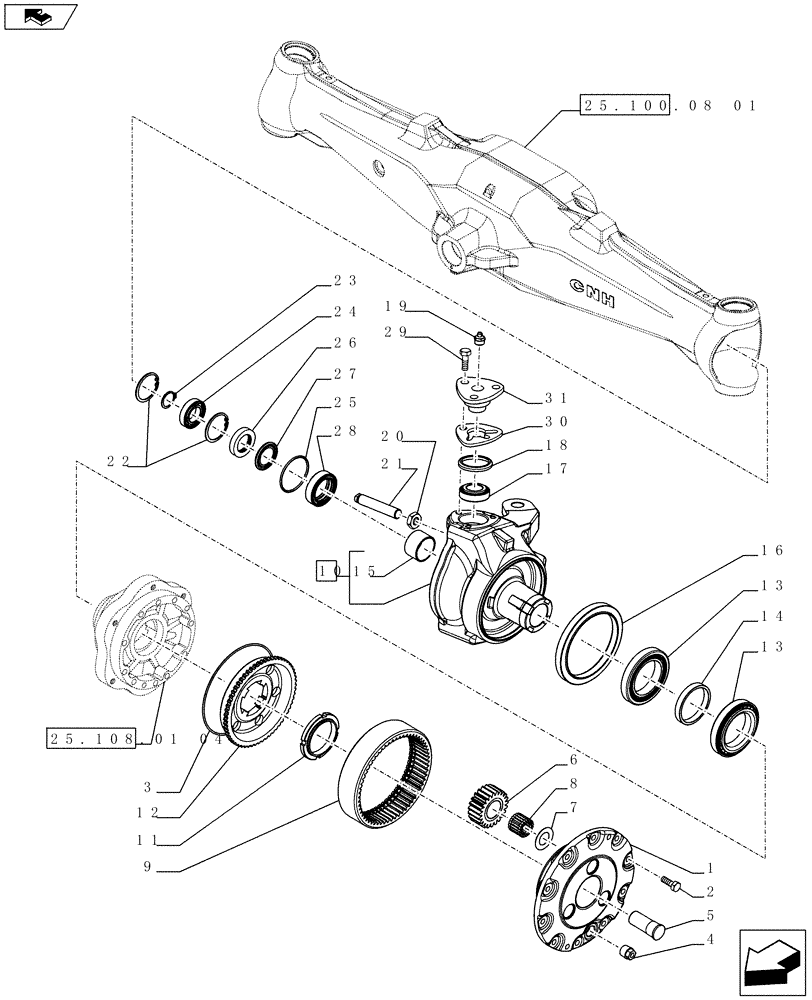

Запчасти Case IH FARMALL 65C (25.108.01[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS - STEERING KNUCKLES (25) - FRONT AXLE SYSTEM

1

5181049

SUPPORT

1шт.

2

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

3

5165162

SNAP RING,M50, Int

2шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

5

5181050

PIN,27mm OD x 63.5mm L

3шт.

6

5169137

GEAR,23T

3шт.

7

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

6шт.

8

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

3шт.

9

5165273

RING GEAR,60T

2шт.

10

87538071

STUB AXLE/STEERING S

ASSY, LH, Contains Ref. 15

1шт.

10

87538071R

REMAN-AXLE

FARMALL 65C, FARMALL 75C, Both TRACTOR, ASSY, LH (9/11-)

1шт.

10

87538071C

CORE-AXLE

Return Number

1шт.

10

87538062

STUB AXLE/STEERING S

ASSY, RH, Contains Ref. 15

1шт.

10

87538062R

REMAN-AXLE

FARMALL 65C, FARMALL 75C, Both TRACTOR, ASSY, RH (9/11-)

1шт.

10

87538062C

CORE-AXLE

Return Number

1шт.

11

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

LH

1шт.

11

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

RH

1шт.

12

5173284

GEAR,60T

2шт.

13

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

4шт.

14

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

2шт.

15

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

1шт.

16

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

2шт.

17

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

4шт.

18

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

19

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

20

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

21

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

22

86536801

SNAP RING,M55, Int

4шт.

23

370003

SNAP RING,M30, External

3шт.

24

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

25

86977781

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

26

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

27

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

28

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

2шт.

29

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

30

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

31

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN

1шт.
