Запчасти Case IH FARMALL 65C (25.102.03) - 4WD FRONT AXLE - DIFFERENTIAL LOCKING (25) - FRONT AXLE SYSTEM

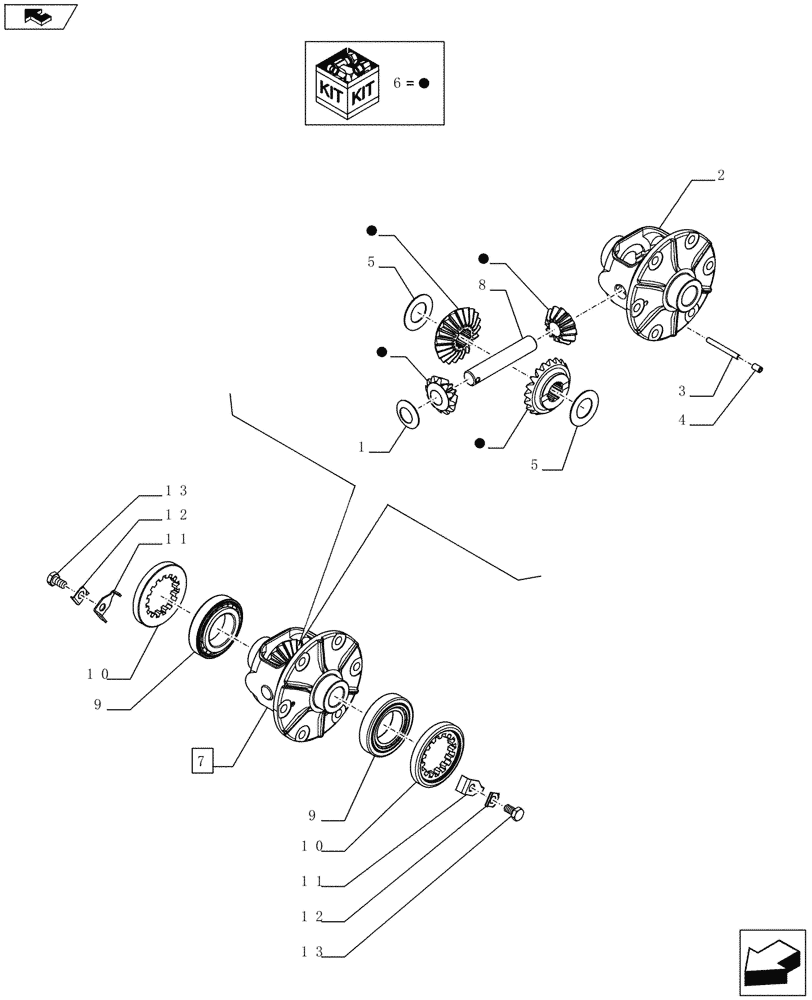

Схема запчастей Case IH FARMALL 65C - (25.102.03) - 4WD FRONT AXLE - DIFFERENTIAL LOCKING (25) - FRONT AXLE SYSTEM
home
11
12
6
1
2
11
6
5
6
6
13
10
8
6
3
10
9
13
4
7
6
5
9
12

Артикул

Название

Примечание

Количество

1

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

1шт.

2

5174801

HOUSING

4шт.

3

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

4

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

5

5167694

THRUST WASHER,30.2mm ID x 54mm OD x 1.6mm Thk

4шт.

6

87523074

KIT

ASSY, Differential Gears

1шт.

7

5167698

DIFFERENTIAL

ASSY, Contains Ref. 1-6, 8

1шт.

8

5103612

PIN,22mm OD x 123mm L

4шт.

9

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

2шт.

10

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.

11

4966243

ADJUSTING PLATE

2шт.

12

562659

PLATE

2шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 13
