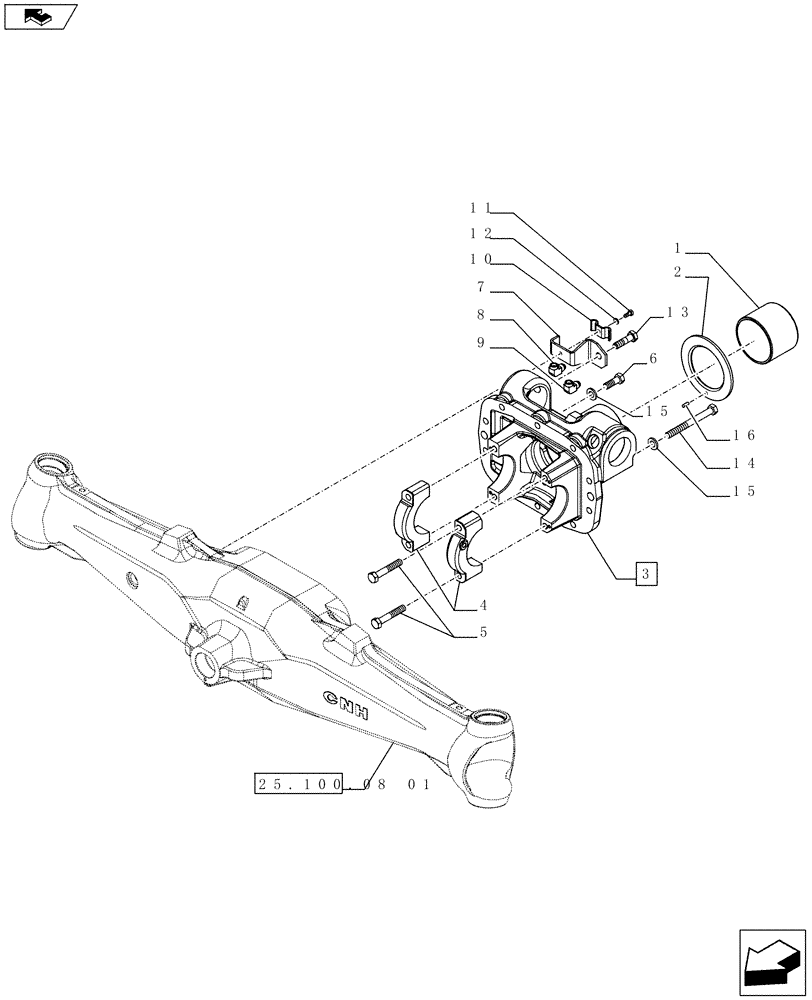

Запчасти Case IH FARMALL 65C (25.100.08[02]) - 4WD FRONT AXLE - SUPPORT (25) - FRONT AXLE SYSTEM

1

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

2

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

3

87335203

SUPPORT

ASSY, Contains Ref. 1, 2, 4, 5, 16

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

3шт.

7

47131788

BRACKET

1шт.

8

47131857

RIGID TUBE

1шт.

9

47124110

HYD TUBE

2шт.

10

4999554

CLAMP,2 Hoses

1шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

13

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

6шт.

14

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

1шт.

15

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

9шт.

16

4966244

PIN,5mm OD x 15mm L

1шт.
