Запчасти Case IH FARMALL 65C (25.100.0101) - 2WD FRONT AXLE SUPPORT (VAR.336489 / 743562) (25) - FRONT AXLE SYSTEM

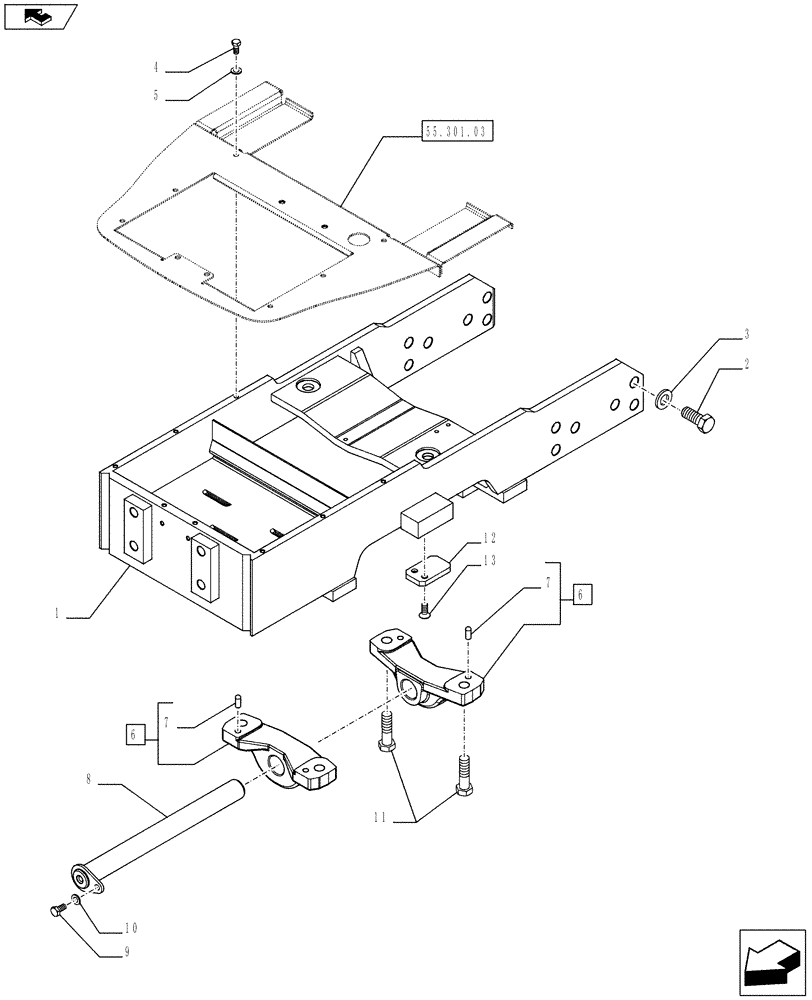

Схема запчастей Case IH FARMALL 65C - (25.100.0101) - 2WD FRONT AXLE SUPPORT (VAR.336489 / 743562) (25) - FRONT AXLE SYSTEM
55.301.03
5
6
home
9
10
12
2
6
7
7
8
4
3
1
11
13

Артикул

Название

Примечание

Количество

1

84367970

AXLE SUPPORT

1шт.

2

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

6шт.

3

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

6шт.

4

16043511

SCREW

6шт.

5

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

5шт.

6

84370522

SUPPORT

ASSY, Contains Ref. 7

2шт.

7

10837710

DOWEL,M10 x 25

2шт.

8

5110400

PIVOT PIN,400mm L

1шт.

9

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

11

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

4шт.

12

87572509

SPACER

2шт.

13

14442721

SCREW,Hex Soc Flat Hd, M10 x 30, 8.8

4шт.

Выбрано товаров: 13
