Запчасти Case IH FARMALL 65C (25.100.01) - FRONT AXLE SUPPORT (25) - FRONT AXLE SYSTEM

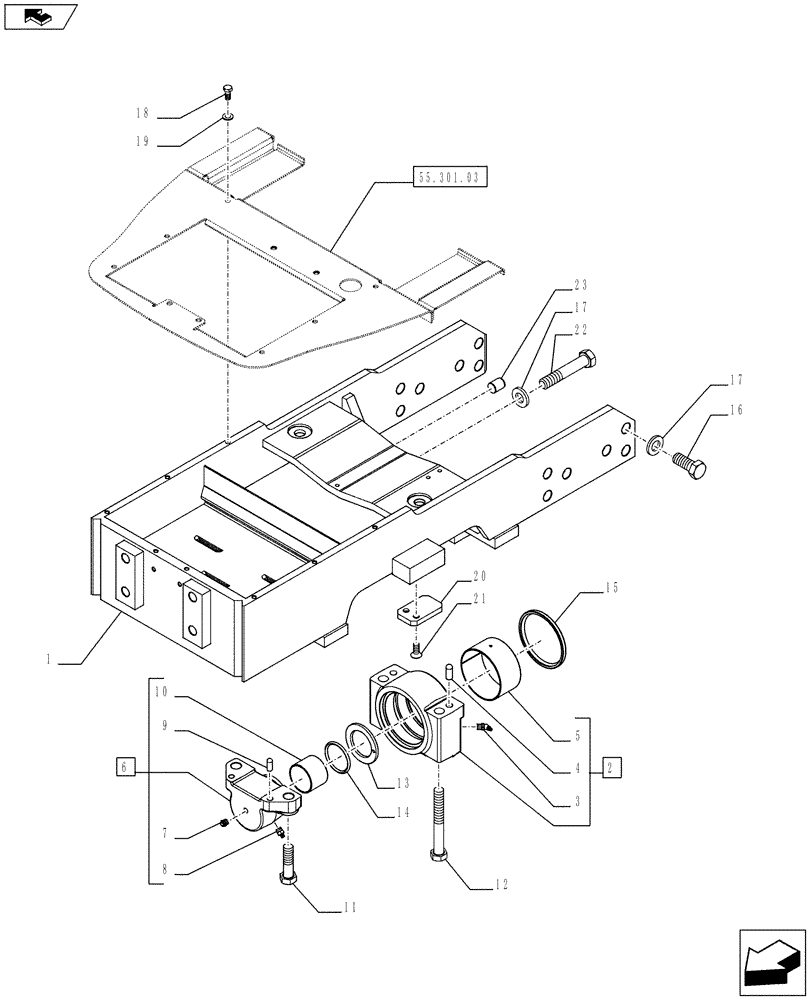

Схема запчастей Case IH FARMALL 65C - (25.100.01) - FRONT AXLE SUPPORT (25) - FRONT AXLE SYSTEM
5
20
13
17
15
6
7
55.301.03
18
14
22
12
9
23
21
8
4
19
11
home
2
1
3
10
17
16

Артикул

Название

Примечание

Количество

1

84367975

AXLE SUPPORT

1шт.

2

47131328

SUPPORT

ASSY, Contains Ref. 3-5

1шт.

3

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

4

10837810

DOWEL,M12 x 30.00mm

2шт.

5

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

6

5140452

SUPPORT

ASSY, Contains Ref. 7-10

1шт.

7

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

1шт.

9

10837710

DOWEL,M10 x 25

2шт.

10

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52 x 57 x 42

1шт.

11

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

12

14272934

BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9

2шт.

13

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

14

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

15

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

99 x 115 x 7.5

1шт.

16

15988237

BOLT,Hex, M20 x 1.5 x 55, 10.9, Full Thd

6шт.

17

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

8шт.

18

16043511

SCREW

6шт.

19

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

8.4 x 16 x 1.6

5шт.

20

87572509

SPACER

2шт.

21

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

4шт.

22

15989334

BOLT,Hex, M20 x 1.5 x 110mm, Cl 10.9

2шт.

23

84398609

PIN,20mm OD x 25mm L

2шт.

Выбрано товаров: 23
