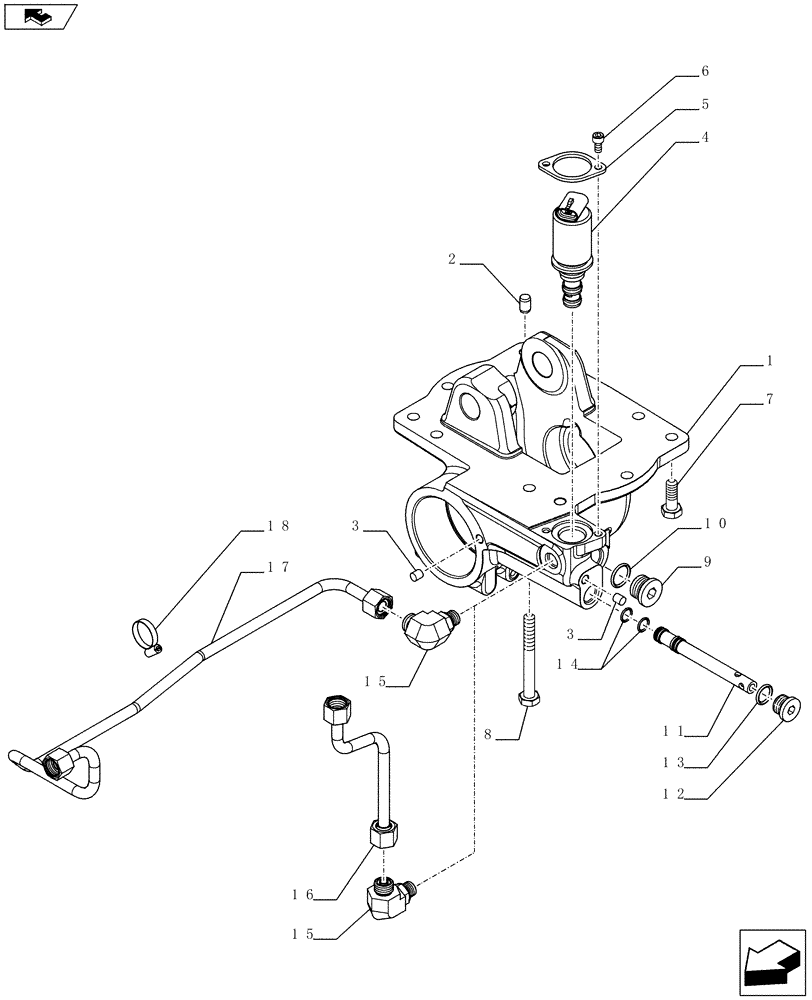

Запчасти Case IH FARMALL 65C (23.202.02) - 4WD ELECTROHYDRAULIC ENGAGEMENT - IDLER CASE AND SOLENOID VALVE (VAR.330307-332307 / 743592) (23) - FOUR WHEEL DRIVE SYSTEM

1

84284020

HOUSING

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

14536490

PLUG,8.00mm Dia x 15.70mm L

2шт.

4

84276869

SOLENOID

Engagement 4WD

1шт.

5

5194826

BRACKET

1шт.

6

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

7

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

7шт.

8

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

1шт.

9

10118840

PLUG,M22 x 1.5 x 18, Brass

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

84235482

SPOOL

1шт.

12

10119414

PLUG,M18 x 1.5 x 16

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

14453080

O-RING,0.426" ID x 0.07"

2шт.

15

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

16

84235485

RIGID TUBE

1шт.

With 4WD Engagement For Shuttle Transmission, VAR.330307 (Commercial Feature 743592)

1шт.

17

84235488

RIGID TUBE

1шт.

With 4WD Engagement For Power Shuttle Transmission, VAR.332307 (Commercial Feature 743592)

1шт.

18

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

With 4WD Engagement For Power Shuttle Transmission, VAR.332307 (Commercial Feature 743592)

1шт.
