Запчасти Case IH FARMALL 65C (23.101.0501) - 4WD IDLER CONTROLS - L/CAB (23) - FOUR WHEEL DRIVE SYSTEM

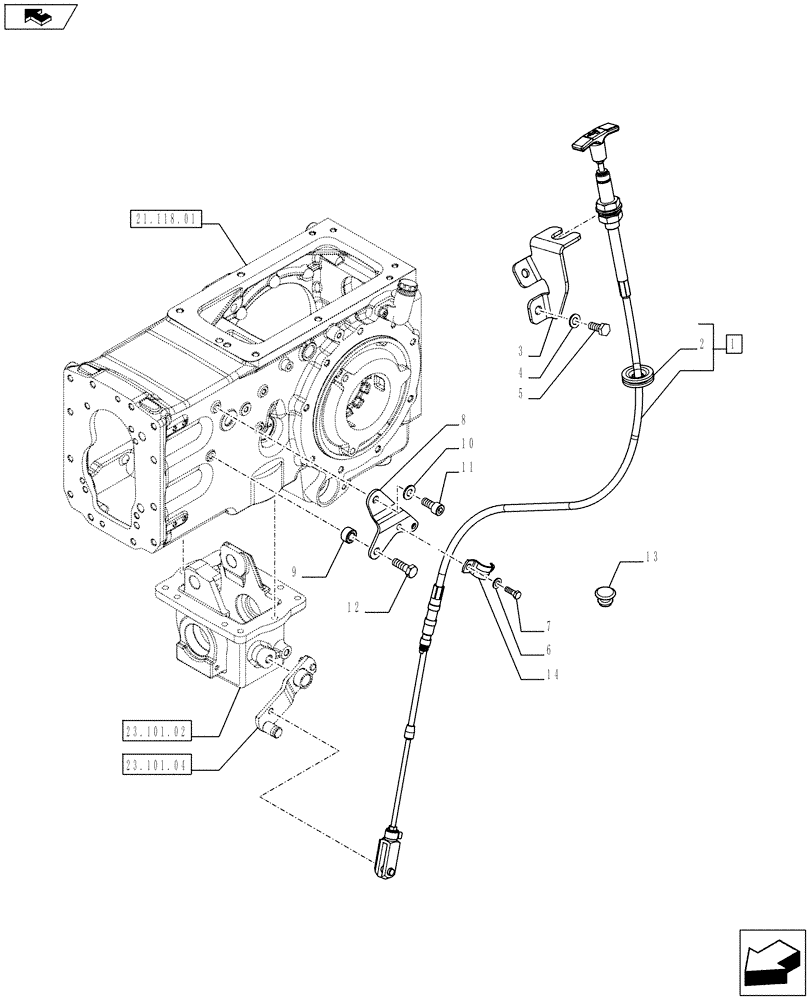

Схема запчастей Case IH FARMALL 65C - (23.101.0501) - 4WD IDLER CONTROLS - L/CAB (23) - FOUR WHEEL DRIVE SYSTEM
4
6
9
14
3
10
home
5
12
8
1
2
23.101.02
21.118.01
23.101.04
7
11
13

Артикул

Название

Примечание

Количество

1

84309828

FLEXIBLE CONTROL,1059mm L

Double Traction, ASSY, Contains Ref. 2

1шт.

2

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

3

84322703

BRACKET

1шт.

4

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

8.4 x 16 x 1.6

2шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

12637821

WASHER,5.15mm ID x 11mm OD x 1mm Thk

2шт.

7

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

2шт.

8

84339089

BRACKET

1шт.

9

84341377

SPACER,10.5mm ID x 20mm OD x 12mm L

1шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

11

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

12

84145860

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8

1шт.

13

81862738

PLUG,M38 x 28 x 5mm

1шт.

Electrohydraulic Engagement 4WD, VAR.330307-332307 (Commercial Feature 743592)

1шт.

14

84405016

CLEVIS

1шт.

Выбрано товаров: 15
