(23.101.01[02]) - 4WD PROPELLER SHAFT - GUARD

Запчасти Case IH FARMALL 65C (23.101.01[02]) - 4WD PROPELLER SHAFT - GUARD (23) - FOUR WHEEL DRIVE SYSTEM

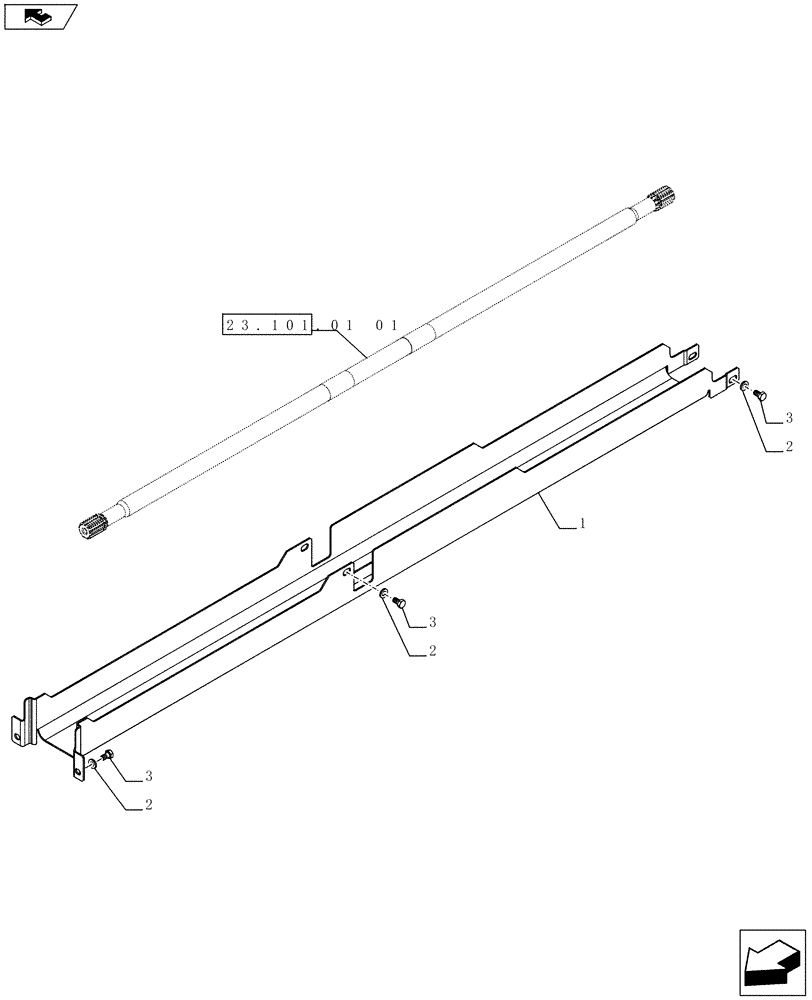

Схема запчастей Case IH FARMALL 65C - (23.101.01[02]) - 4WD PROPELLER SHAFT - GUARD (23) - FOUR WHEEL DRIVE SYSTEM
3
3
3
2
2
1
home
23.101.01 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84303939

SHIELD

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

3

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.
