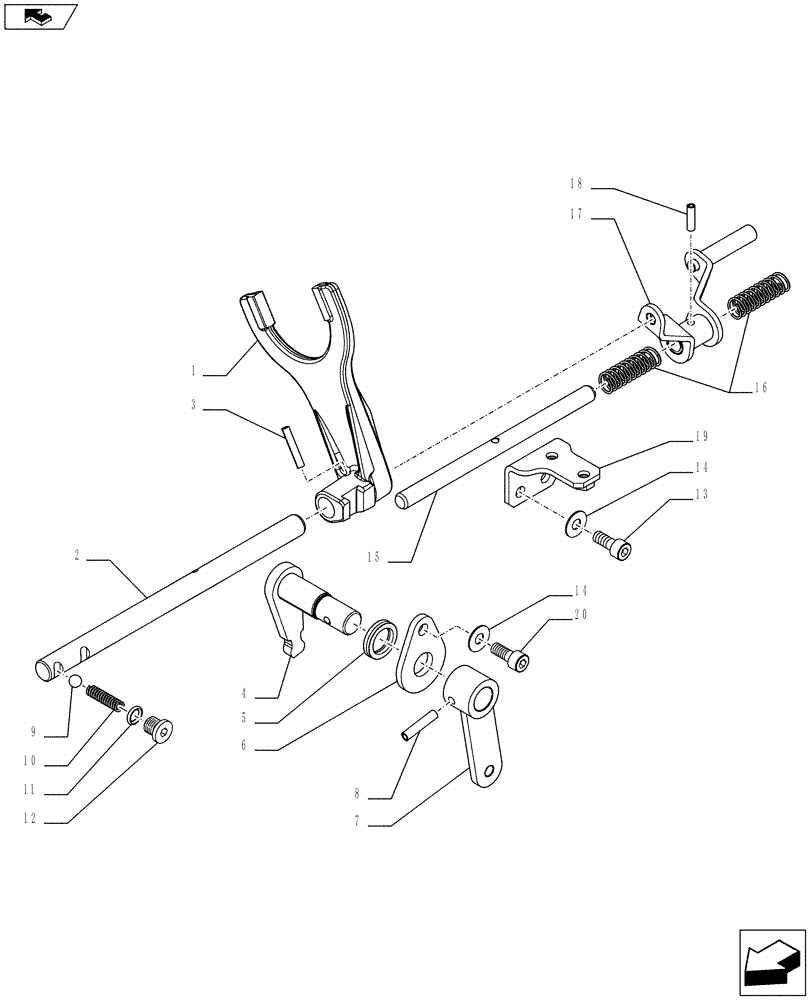

Запчасти Case IH FARMALL 65C (21.160.01[01]) - CREEPER (12X12 - 20X20) FOR SHUTTLE TRANSMISSION - CONTROL LEVER (VAR.330110 / 743549; VAR.330112 / 743550) (21) - TRANSMISSION

1

84233705

FORK

1шт.

2

84233708

ROD

L=255

1шт.

3

13907670

ROLL PIN,M5 x 30, Coiled

1шт.

4

84284079

CONTROL LEVER

1шт.

5

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

SEALRING

1шт.

6

84233704

PLATE

1шт.

7

84225197

CONTROL LEVER

1шт.

8

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

9

20063390

BALL,8.73mm OD

1шт.

10

4994342

SPRING,8mm OD x 30mm OAL

1шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

13

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

14

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

3шт.

15

84233710

ROD

1шт.

16

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

2шт.

17

84304647

IDLER LEVER

1шт.

18

838-3520

PIN,M5 x 20, Coiled

1шт.

19

84297860

BRACKET

1шт.

20

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
