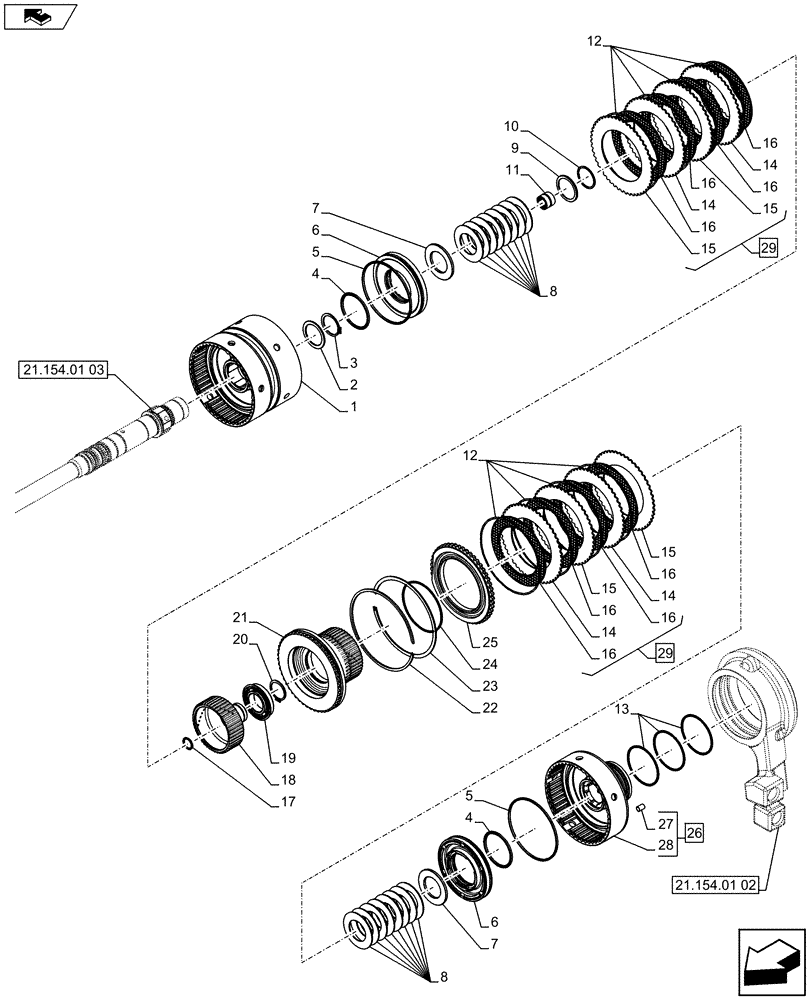

Запчасти Case IH FARMALL 65C (21.154.01[04]) - POWERSHUTTLE TRANSMISSION - CLUTCH (VAR.330274-330276) (21) - TRANSMISSION

1

84408828

CLUTCH HOUSING

A-B Complete

1шт.

2

84245663

SPACER,40.1mm ID x 53mm OD x 2mm L

1шт.

3

11068871

CIRCLIP

1шт.

4

84256292

SEAL

2шт.

5

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

2шт.

6

84410404

THRUST RING

2шт.

7

84245596

RING

2шт.

8

84245640

BELLEVILLE SPRING

16шт.

9

84245601

RETAINER CUP

1шт.

10

84341473

SNAP RING

1шт.

11

84250052

NEEDLE BEARING

1шт.

12

81864341

SPRING,148.35mm ID

8шт.

13

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

3шт.

14

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK

2шт.

15

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

CLUTCH DISK

2шт.

16

87534846

CLUTCH PLATE,92.66mm ID x 133.35mm OD x 2mm Thk

4шт.

17

87584290

O-RING,0.671" ID x 0.81" OD x 0.139"

1шт.

18

84237855

HUB

Clutch B

1шт.

19

84250089

BALL BEARING,35mm ID x 62mm OD x 14mm W

1шт.

20

11068371

CIRCLIP,M35

1шт.

21

84237841

HUB

Clutch C

1шт.

22

5173675

SNAP RING,148.6mm ID x 156.6mm OD x 2.5mm Thk

1шт.

23

5162251

CIRCLIP,142.5mm ID

1шт.

24

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

25

5171657

DISC,100mm ID x 152.6mm OD x 10mm Thk

1шт.

26

84408837

CLUTCH HOUSING

ASSY, C Complete, Contains Ref. 27, 28

1шт.

27

14536290

PLUG,6mm

1шт.

28

NSS

NOT SOLD SEPARAT

Housing, Incl in 26

1шт.

29

84410474

CLUTCH PACK

ASSY, Incl 14 - 16

2шт.
