Запчасти Case IH FARMALL 65C (21.154.01[03]) - POWERSHUTTLE TRANSMISSION - DRIVEN SHAFT AND CLUTCH (VAR.330274-330276) (21) - TRANSMISSION

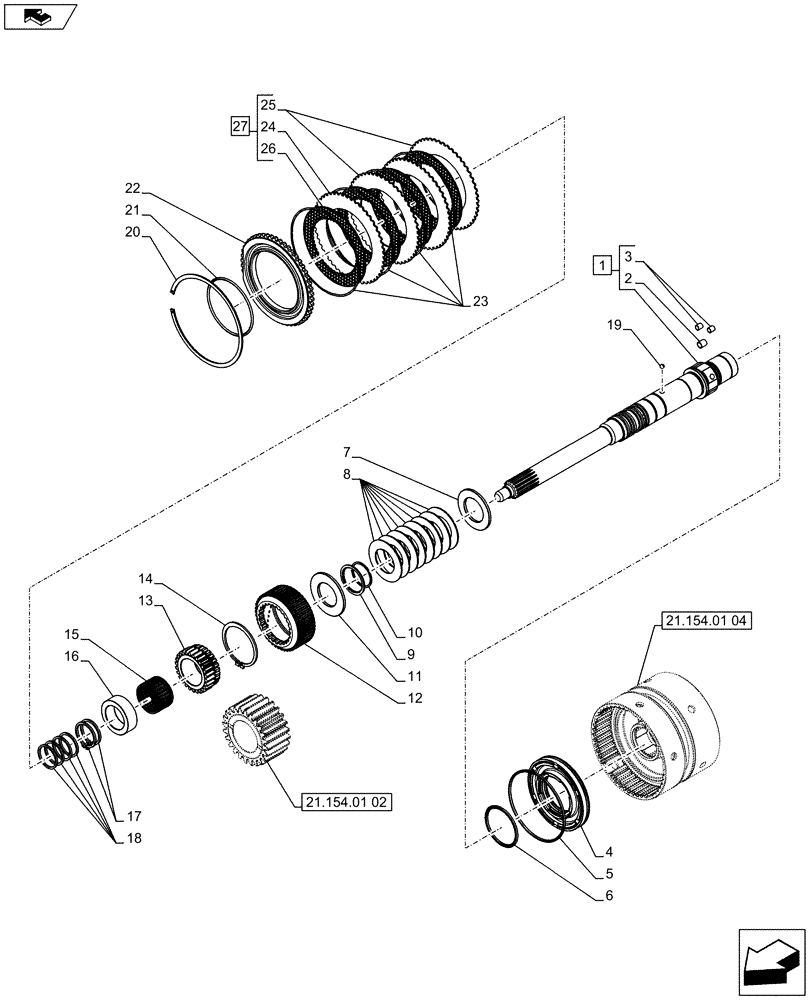

Схема запчастей Case IH FARMALL 65C - (21.154.01[03]) - POWERSHUTTLE TRANSMISSION - DRIVEN SHAFT AND CLUTCH (VAR.330274-330276) (21) - TRANSMISSION
21.154.01 02
16
13
18
2
19
10
21
1
8
25
23
home
11
22
12
20
9
15
14
27
7
6
4
3
5
24
17
26
21.154.01 04

Артикул

Название

Примечание

Количество

1

84269817

SHAFT

ASSY, Contains Ref. 2, 3

1шт.

2

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.

3

14536490

PLUG,8.00mm Dia x 15.70mm L

2шт.

4

84241041

PTO CLUTCH

1шт.

5

84248410

SEAL

1шт.

6

84256292

SEAL

1шт.

7

84245596

RING

1шт.

8

84245640

BELLEVILLE SPRING

8шт.

9

84245601

RETAINER CUP

1шт.

10

84341473

SNAP RING

1шт.

11

84245587

RING

1шт.

12

84378502

HUB

Clutch A

1шт.

13

84243713

GEAR

Reverse Drive

1шт.

14

11070276

SNAP RING,M68, Ext

1шт.

15

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

16

84243712

SPACER

1шт.

17

5123651

SNAP RING,36mm, External

2шт.

18

5194902

RING,33.9mm ID x 40mm OD x 2.43mm Thk

4шт.

19

20419320

BALL,6.35mm OD

1шт.

20

5162251

CIRCLIP,142.5mm ID

1шт.

21

5177500

SEAL,Locking, 90.7mm ID x 100.5mm OD x 3.8mm Thk

SEALRING

1шт.

22

5171657

DISC,100mm ID x 152.6mm OD x 10mm Thk

1шт.

23

81864341

SPRING,148.35mm ID

4шт.

24

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK

2шт.

25

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

CLUTCH DISK

2шт.

26

87534846

CLUTCH PLATE,92.66mm ID x 133.35mm OD x 2mm Thk

4шт.

27

84410474

CLUTCH PACK

ASSY, Incl 24 - 26

1шт.

Выбрано товаров: 27
