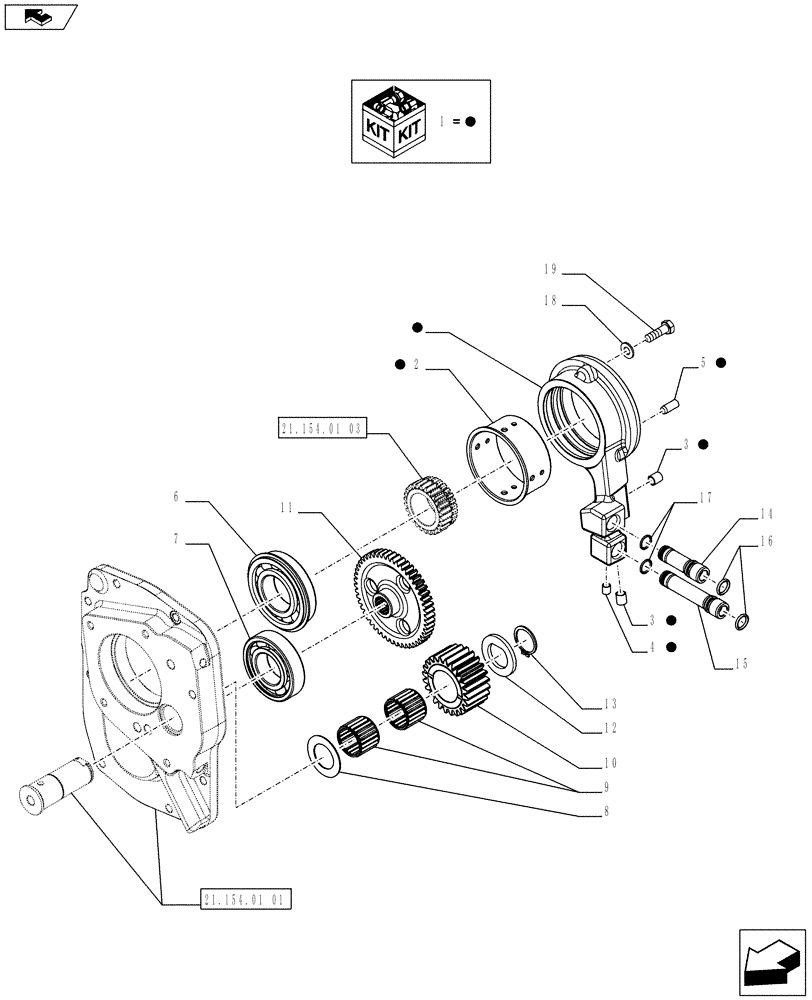

Запчасти Case IH FARMALL 65C (21.154.01[02]) - POWER SHUTTLE TRANSMISSION - MANIFOLD AND GEARS (VAR.330274-330276) (21) - TRANSMISSION

1

84274362

COVER

ASSY, Contains Ref. 2-5

1шт.

2

84248413

BUSHING

1шт.

3

14536590

PLUG,10.00mm Dia x 19.80mm L

D=10

2шт.

4

14536490

PLUG,8.00mm Dia x 15.70mm L

D=8

1шт.

5

837-8020

DOWEL,8mm OD x 20mm L

1шт.

6

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

7

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

8

84246742

THRUST WASHER

1шт.

9

84474241

NEEDLE BEARING,28mm ID x 35mm OD x 16mm W

2шт.

10

84237574

GEAR

Intermediate Reverse

1шт.

11

84243539

GEAR

Reverse Driven

1шт.

12

5125577

THRUST WASHER

1шт.

13

11067676

SNAP RING,M28, Ext

1шт.

14

84245670

PIPE

1шт.

15

84245671

PIPE

1шт.

16

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

17

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

18

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

3шт.

19

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.
