(21.154.01[01]) - POWER SHUTTLE TRANSMISSION - COVERS (VAR.330274-330276)

Запчасти Case IH FARMALL 65C (21.154.01[01]) - POWER SHUTTLE TRANSMISSION - COVERS (VAR.330274-330276) (21) - TRANSMISSION

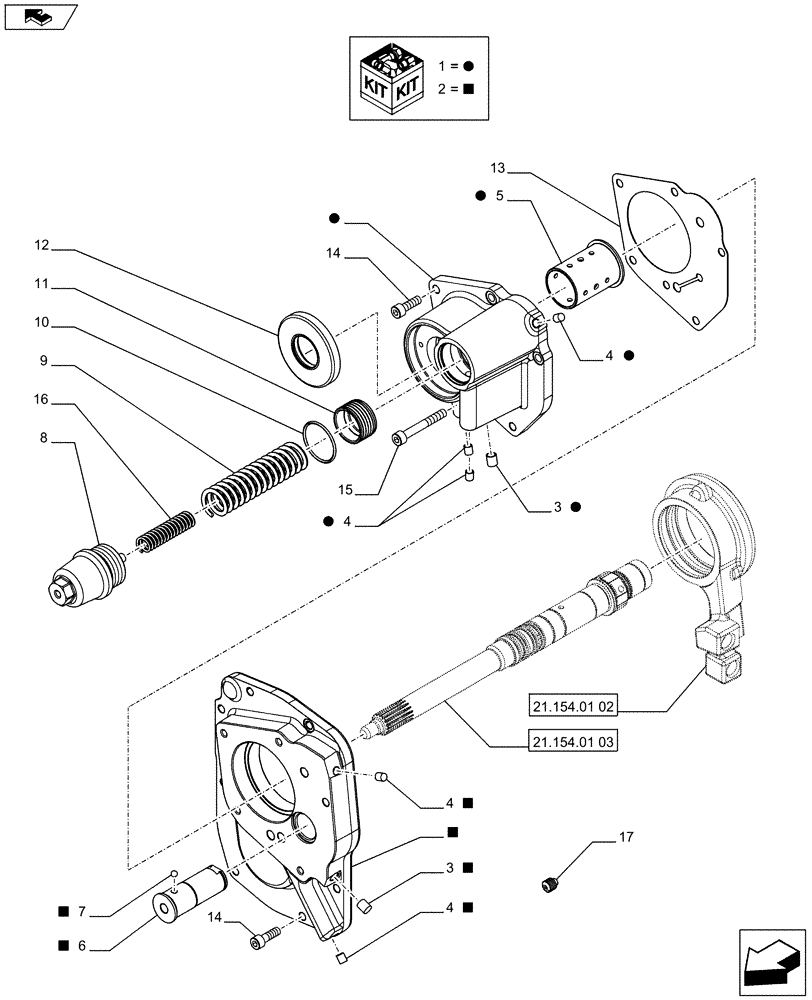

Схема запчастей Case IH FARMALL 65C - (21.154.01[01]) - POWER SHUTTLE TRANSMISSION - COVERS (VAR.330274-330276) (21) - TRANSMISSION
1
1
13
home
21.154.01 02
21.154.01 03
2
2
1
2
2
3
12
6
11
8
2
9
17
4
3
4
1
1
5
1
7
4
2
4
15
1
14
2
14
2
16
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84274364

COVER

ASSY, Contains Ref. 3-5

1шт.

2

84274363

COVER

ASSY, Contains Ref. 3, 4, 6, 7

1шт.

3

14536590

PLUG,10.00mm Dia x 19.80mm L

D=10

2шт.

4

14536490

PLUG,8.00mm Dia x 15.70mm L

D=8

5шт.

5

84245683

BUSHING,40.01mm ID x 52mm OD x 64mm L

1шт.

6

84245680

PIN

1шт.

7

20419320

BALL,6.35mm OD

1шт.

8

84424759

CAP

1шт.

9

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

10

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

11

84424758

SPRING,Compression, 20mm OD x 84.5mm L

1шт.

12

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

35 x 80 x 10

1шт.

13

84248411

GASKET

1шт.

14

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

11шт.

15

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

1шт.

16

84424758

SPRING,Compression, 20mm OD x 84.5mm L

1шт.

17

84422311

RESTRICTOR

1шт.
