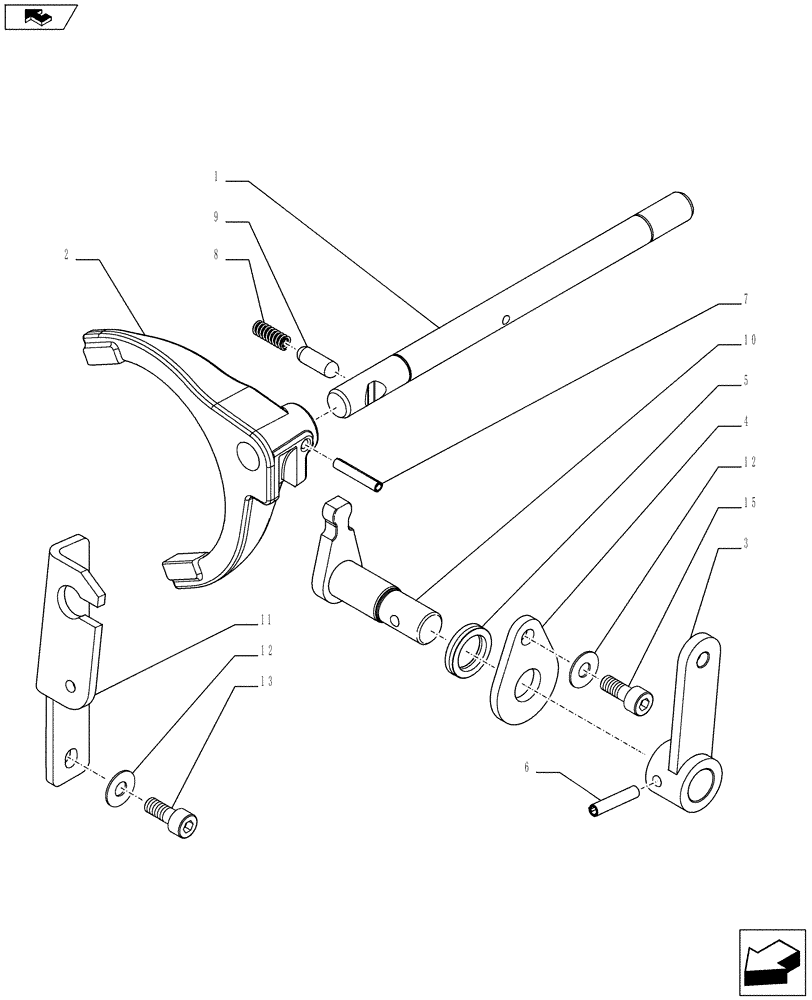

Запчасти Case IH FARMALL 65C (21.148.06) - CENTRAL REDUCTION GEARS CONTROLS - RANGE GEARSHIFT MECHANISM - RODS AND FORKS (21) - TRANSMISSION

1

84233701

ROD

1шт.

2

84233702

FORK

1шт.

3

84351354

LEVER

1шт.

4

84233704

PLATE

1шт.

5

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

SEALRING

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

7

13907670

ROLL PIN,M5 x 30, Coiled

1шт.

8

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

9

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

10

84284075

CONTROL LEVER

1шт.

11

84290895

BRACKET

1шт.

12

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

3шт.

13

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

14

300625

SNAP RING,M16, Ext

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
