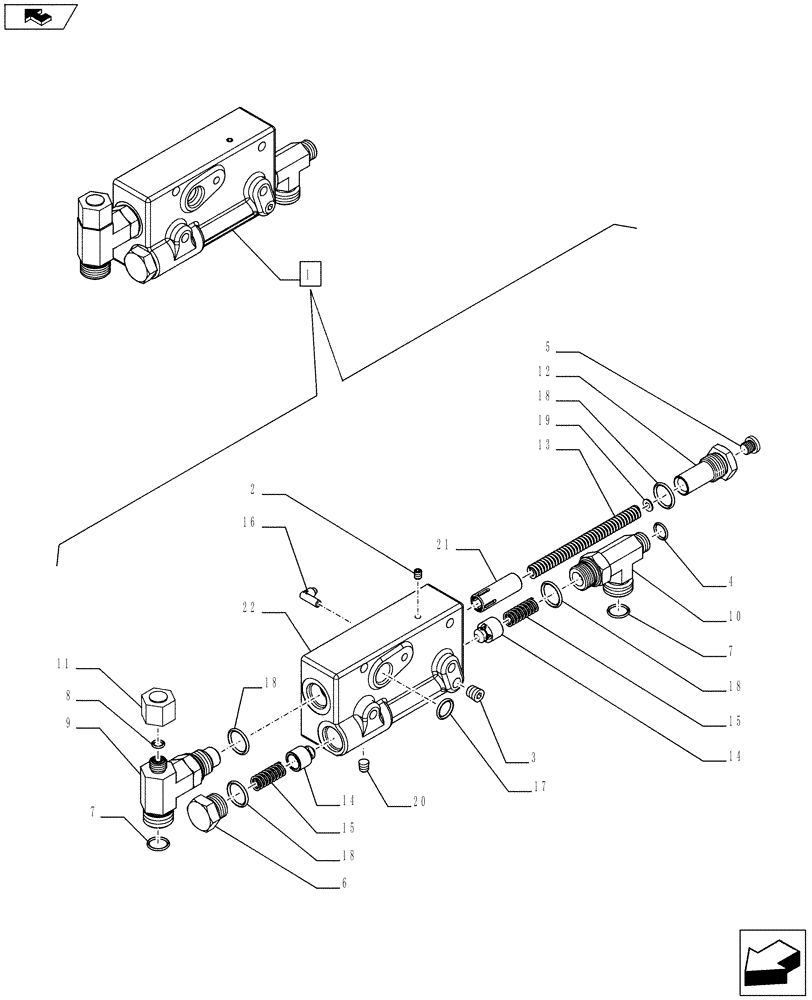

Запчасти Case IH FARMALL 65C (21.134.0201[04]) - PRESSURE CONTROL VALVE - BREAKDOWN (VAR.334068-332069 / 743557) (21) - TRANSMISSION

1

84332906

VALVE, PRESSURE CONT

ASSY, Contains Ref. 2-22

1шт.

2

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

10118540

PLUG,M10 x 1 x 11, Brass

1шт.

6

84332901

PLUG,M22 x 1.5

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

84380290

FITTING

1шт.

10

84332902

FITTING

1шт.

11

9625546

CAP,11/16" - 16 ORFS

1шт.

12

84332904

PLUG,M22 x 1.5

M22 x 1,5

1шт.

13

5157119

SPRING,11.5mm x 127mm

1шт.

14

5169565

VALVE,By-Pass

2шт.

15

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

16

47137823

HYD CONNECTOR

1шт.

17

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

19

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

20

83931497

PLUG,3/8-18 x 0.42

1шт.

21

NSS

NOT SOLD SEPARAT

1шт.

22

NSS

NOT SOLD SEPARAT

1шт.
