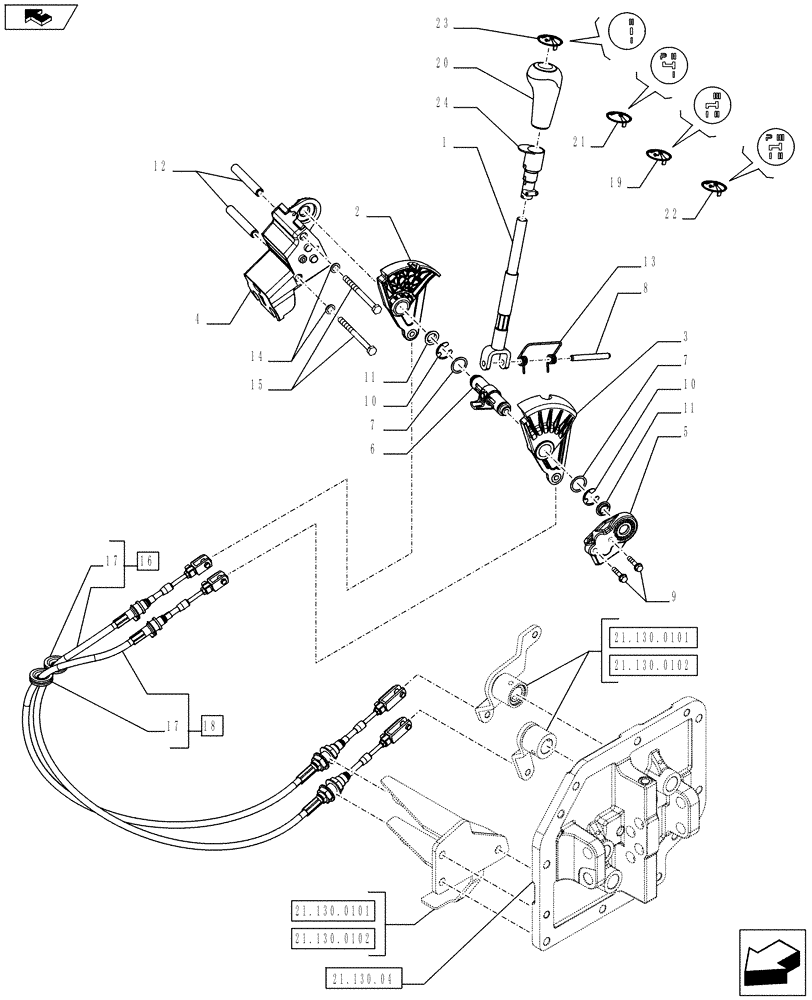

Запчасти Case IH FARMALL 65C (21.130.03) - RANGE SELECTOR AND CABLES - NAR (21) - TRANSMISSION

1

84342507

LEVER

1шт.

2

84338370

SUPPORT

1шт.

3

84338371

SUPPORT

1шт.

4

84338365

SUPPORT

1шт.

5

84338366

SUPPORT

1шт.

6

84338367

SHAFT

1шт.

7

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

2шт.

8

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

9

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

10

16165174

CIRCLIP,M16

2шт.

11

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

84325171

SPRING

1шт.

14

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

15

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

16

84295361

FLEXIBLE CABLE

ASSY, RH, Contains Ref.17

1шт.

17

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

18

84295362

FLEXIBLE CABLE

ASSY, LH, Contains Ref. 17

1шт.

19

84381836

INSERT

12 x 12

1шт.

L/CAB Models Only

1шт.

Power Shuttle Transmission 12X12, VAR.330276

1шт.

Shuttle Transmission 12 x 12 with Mechanical PTO, VAR.330272 (Comm. Feature 743546)

1шт.

20

84210474

KNOB

1шт.

21

84381844

INSERT

8 x 8

1шт.

W/CAB Models Only

1шт.

22

84381845

INSERT

12 x 12

1шт.

W/CAB Models Only

1шт.

Power Shuttle Transmission 12X12, VAR.330276

1шт.

Shuttle Transmission 12 x 12 with Mechanical PTO, VAR.330272 (Comm. Feature 743546)

1шт.

23

84483460

INSERT

8 x 8

1шт.

L/CAB Models Only

1шт.

24

84475348

SELECTOR

1шт.
