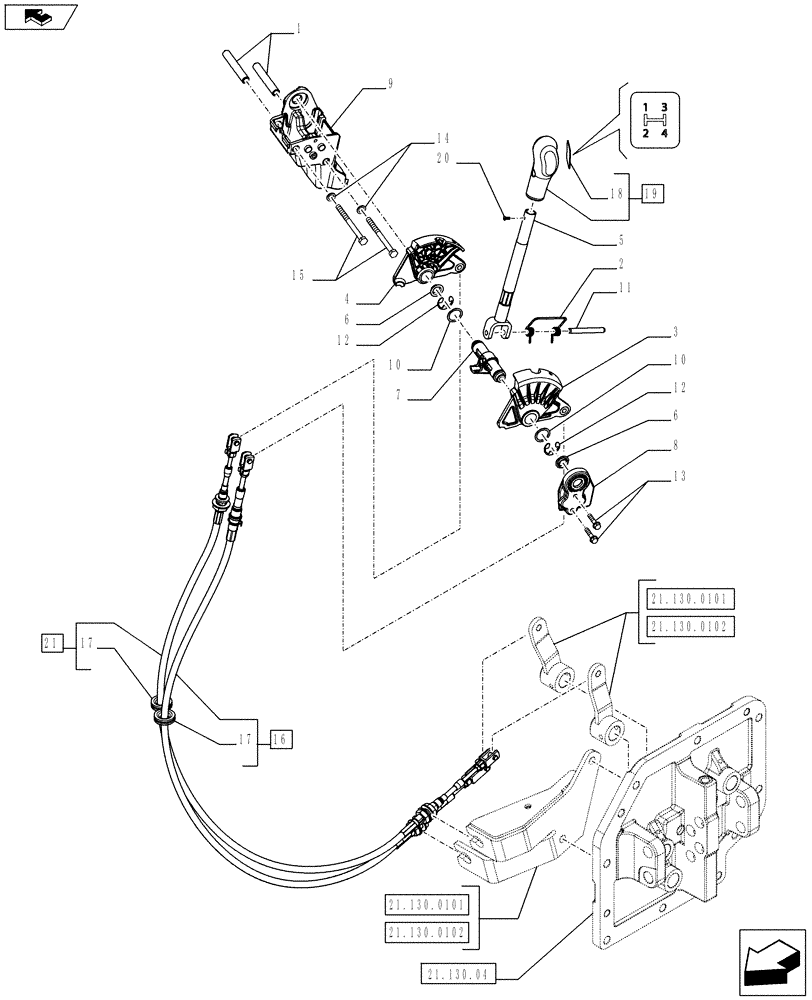

Запчасти Case IH FARMALL 65C (21.130.02) - SPEED GEARSHIFT SELECTOR AND CABLES (21) - TRANSMISSION

1

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

2

84325171

SPRING

1шт.

3

84338369

SUPPORT

1шт.

4

84338368

SUPPORT

1шт.

5

84343010

LEVER

1шт.

6

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

7

84338367

SHAFT

1шт.

8

84338366

SUPPORT

1шт.

9

84338365

SUPPORT

1шт.

10

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

2шт.

11

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

12

16165174

CIRCLIP,M16

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

14

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

15

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

16

84295360

FLEXIBLE CABLE

ASSY, LH, Contains Ref. 17

1шт.

17

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

18

84381847

COVER

1шт.

19

84399104

KNOB

ASSY, Contains Ref. 18

1шт.

20

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

1шт.

21

84295359

BOWDEN CONTROL

ASSY, RH, Contains Ref. 17

1шт.
