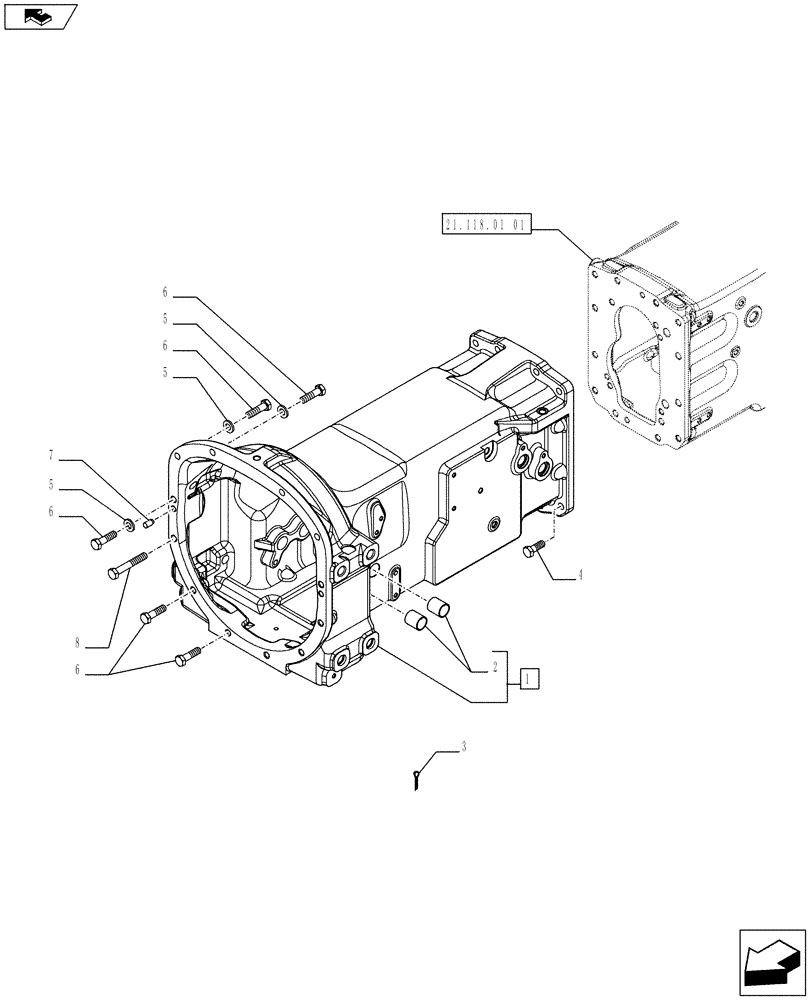

Запчасти Case IH FARMALL 65C (21.110.01) - TRACTOR BODY - GEARBOX HOUSING (21) - TRANSMISSION

1

84225990

GEARBOX

ASSY, Contains Ref. 2

1шт.

2

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

4шт.

3

10798204

COTTER PIN,M6.3 x 32

1шт.

4

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

6шт.

5

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

6шт.

6

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

14шт.

7

4658441

DOWEL,10mm OD x 20mm L

D=10 x 20

2шт.

8

15541434

BOLT,M12 x 1.25 x 80mm

2шт.

9

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

10шт.
