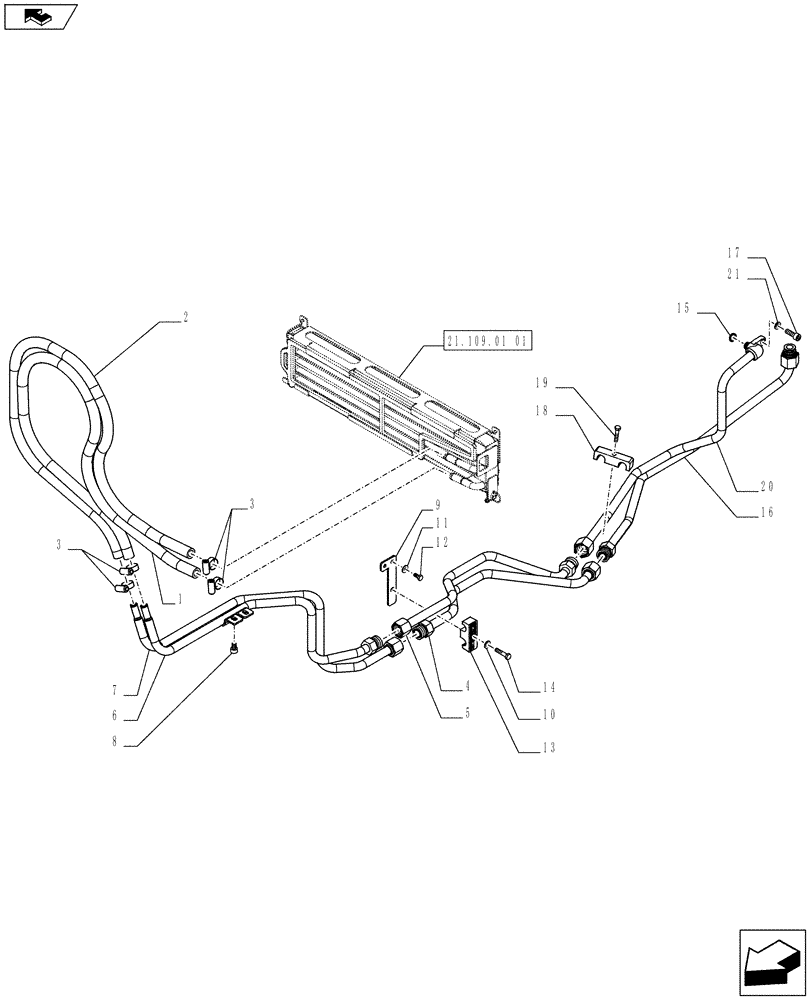

Запчасти Case IH FARMALL 65C (21.109.01[02]) - OIL COOLER FOR POWER SHUTTLE TRANSMISSION - PIPES (VAR.339823 / 743563) (21) - TRANSMISSION

1

84235707

FLEXIBLE HOSE

1шт.

2

84235708

FLEXIBLE HOSE

1шт.

3

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

4шт.

4

84399599

RIGID TUBE

1шт.

5

84399595

RIGID TUBE

1шт.

6

84399590

RIGID TUBE

1шт.

7

84399592

RIGID TUBE

1шт.

8

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

9

84399588

BRACKET

1шт.

10

12639721

WASHER

1шт.

11

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

12

10902111

SCREW,M6 x 14

1шт.

13

87571442

BRACKET

1шт.

14

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

15

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

16

84235711

RIGID TUBE

1шт.

17

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

18

84309294

FIXING PLATE

1шт.

19

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

20

84235712

RIGID TUBE

1шт.

21

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.
