Запчасти Case IH FARMALL 65C (21.104.0101[02]) - HYDRAULIC GEAR BOX CONTROLS (POWER SHUTTLE) - OIL FILTER AND PIPES (VAR.334068-332069 / 743557) (21) - TRANSMISSION

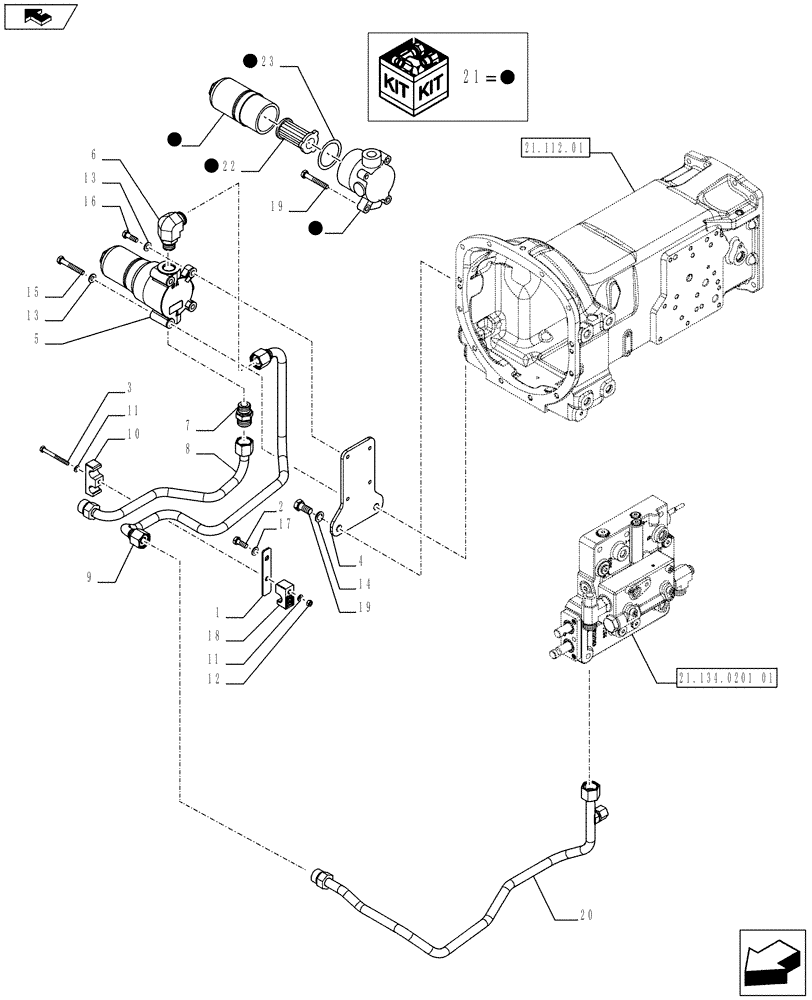

Схема запчастей Case IH FARMALL 65C - (21.104.0101[02]) - HYDRAULIC GEAR BOX CONTROLS (POWER SHUTTLE) - OIL FILTER AND PIPES (VAR.334068-332069 / 743557) (21) - TRANSMISSION
19
12.01
21
7
23
19
5
7
1
18
9
1
16
13
13
15
7
14
4
7
7
8
21.
1
12
home
21.134.0201 01
2
1
3
7
1
1
10
20
17
22
6

Артикул

Название

Примечание

Количество

1

84427545

BRACKET

1шт.

2

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

1шт.

3

10903921

BOLT,Hex, M6 x 65mm, Cl 8.8

1шт.

4

84426998

BRACKET

1шт.

5

5196513

FILTER

, Serial Range: -C7054

1шт.

6

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

7

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

8

84426999

RIGID TUBE

Filter in

1шт.

9

84427004

RIGID TUBE

Filter out

1шт.

10

87571442

BRACKET

1шт.

11

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

2шт.

12

10720124

NUT,Hex, M6 x 1

1шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

14

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

2шт.

15

86900240

BOLT,Hex, M8 x 55mm, Cl 8.8

2шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

18

84309587

BRACKET

1шт.

19

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

20

84427016

RIGID TUBE

to Valve Block

1шт.

21

84256436

HYDRAULIC OIL FILTER

ASSY, Start Serial: D7054

1шт.

22

5194879

ELEMENT

, Start Serial: D7054

1шт.

23

5194880

O-RING KIT

, Start Serial: D7054

1шт.

Выбрано товаров: 23
