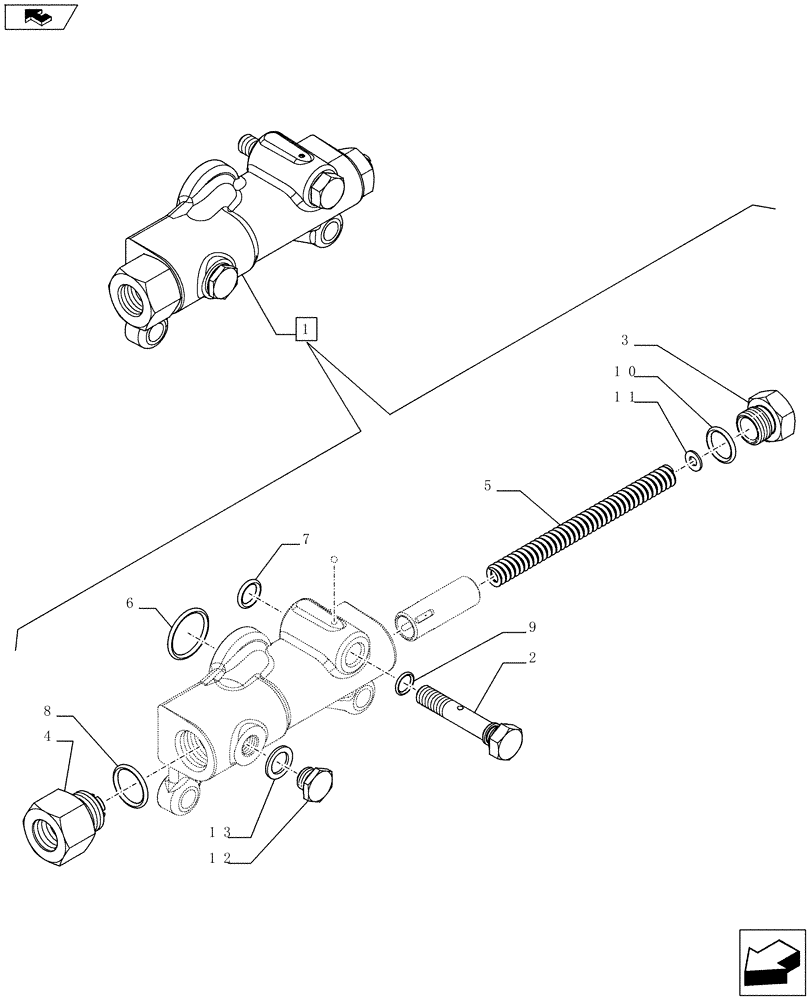

Запчасти Case IH FARMALL 65C (21.100.0101[03]) - TRANSMISSION LUBRICATION SYSTEM - 16-BAR VALVE - BREAKDOWN - END YR 18-APR-2012 (21) - TRANSMISSION

1

5186117

HYDRAULIC VALVE

16 BAR, ASSY, Incl 2 - 13

1шт.

2

5188808

BOLT

1шт.

3

5176204

PLUG,M18 x 1.5

1шт.

4

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

5

5157119

SPRING,11.5mm x 127mm

1шт.

6

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

7

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

12

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.
