(21.100.0101[02]) - TRANSMISSION LUBRICATION SYSTEM - HEAT EXCHANGER OIL DELIVERY PIPE - W/CAB

Запчасти Case IH FARMALL 65C (21.100.0101[02]) - TRANSMISSION LUBRICATION SYSTEM - HEAT EXCHANGER OIL DELIVERY PIPE - W/CAB (21) - TRANSMISSION

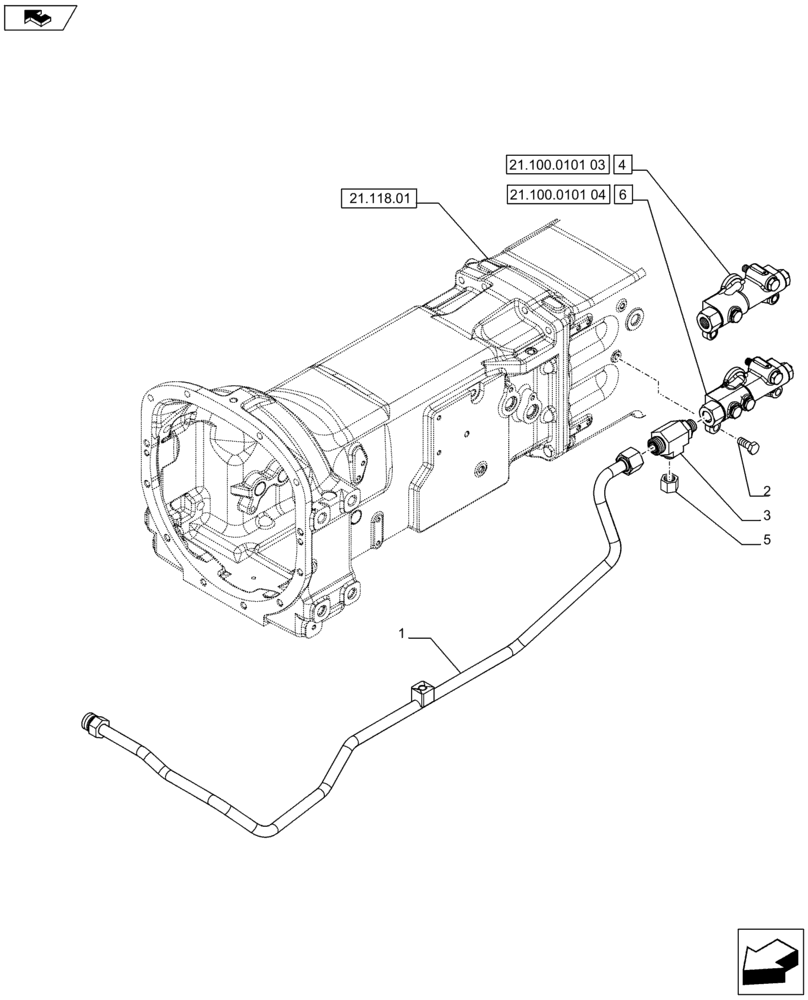

Схема запчастей Case IH FARMALL 65C - (21.100.0101[02]) - TRANSMISSION LUBRICATION SYSTEM - HEAT EXCHANGER OIL DELIVERY PIPE - W/CAB (21) - TRANSMISSION
21.100.0101 04
3
4
1
21.100.0101 03
5
home
6
2
21.118.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84380821

RIGID TUBE

1шт.

2

84145871

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

M10 x 1.25 x 25

2шт.

3

84308737

FITTING

1шт.

4

5186117

HYDRAULIC VALVE

ASSY, 16 Bar, Years: -18-APR-12

1шт.

5

9625546

CAP,11/16" - 16 ORFS

1шт.

6

84488429

HYDRAULIC VALVE

ASSY, 16 Bar, Start Year: 19-APR-12

1шт.

Выбрано товаров: 6
