(21.100.0101[01]) - TRANSMISSION LUBRICATION SYSTEM - PIPE AND MANIFOLD - W/CAB

Запчасти Case IH FARMALL 65C (21.100.0101[01]) - TRANSMISSION LUBRICATION SYSTEM - PIPE AND MANIFOLD - W/CAB (21) - TRANSMISSION

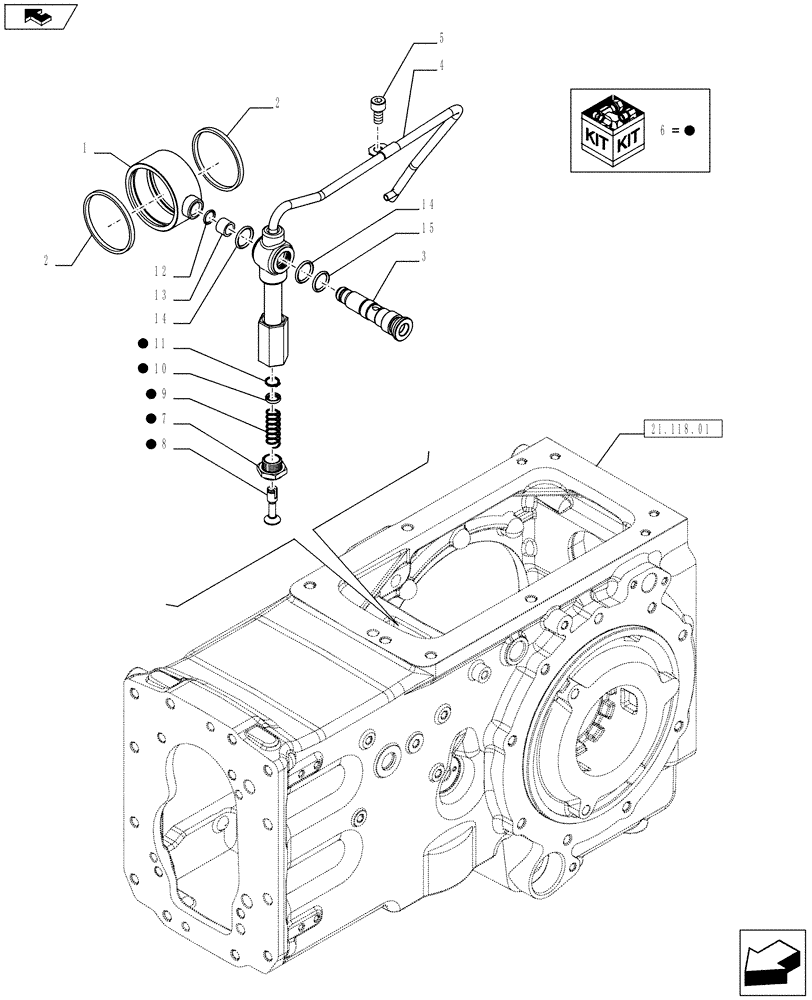

Схема запчастей Case IH FARMALL 65C - (21.100.0101[01]) - TRANSMISSION LUBRICATION SYSTEM - PIPE AND MANIFOLD - W/CAB (21) - TRANSMISSION
6
18.01
2
6
15
1
8
6
6
2
4
7
9
6
13
14
6
1
5
home
3
1
21.
10
14
6
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84252063

MANIFOLD

1шт.

2

84245728

GASKET

62 x 57 x 4

2шт.

3

84246196

BANJO BOLT

1шт.

4

84245694

PIPE

1шт.

5

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

6

5180935

VALVE

ASSY, Contains Ref. 7-11

1шт.

7

5165488

HYD CONNECTOR,M18 x 1.5, 9 mm L

1шт.

8

5165484

VALVE

1шт.

9

5180927

SPRING,13.1mm x 38mm

1шт.

10

5165438

SHIM,9.1mm ID x 13.5mm OD x 2.5mm Thk

1шт.

11

5165486

CIRCLIP,9mm

1шт.

12

14453080

O-RING,0.426" ID x 0.07"

1шт.

13

84360848

SPACER,16.2mm ID x 20mm OD x 19mm L

1шт.

14

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

15

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.
