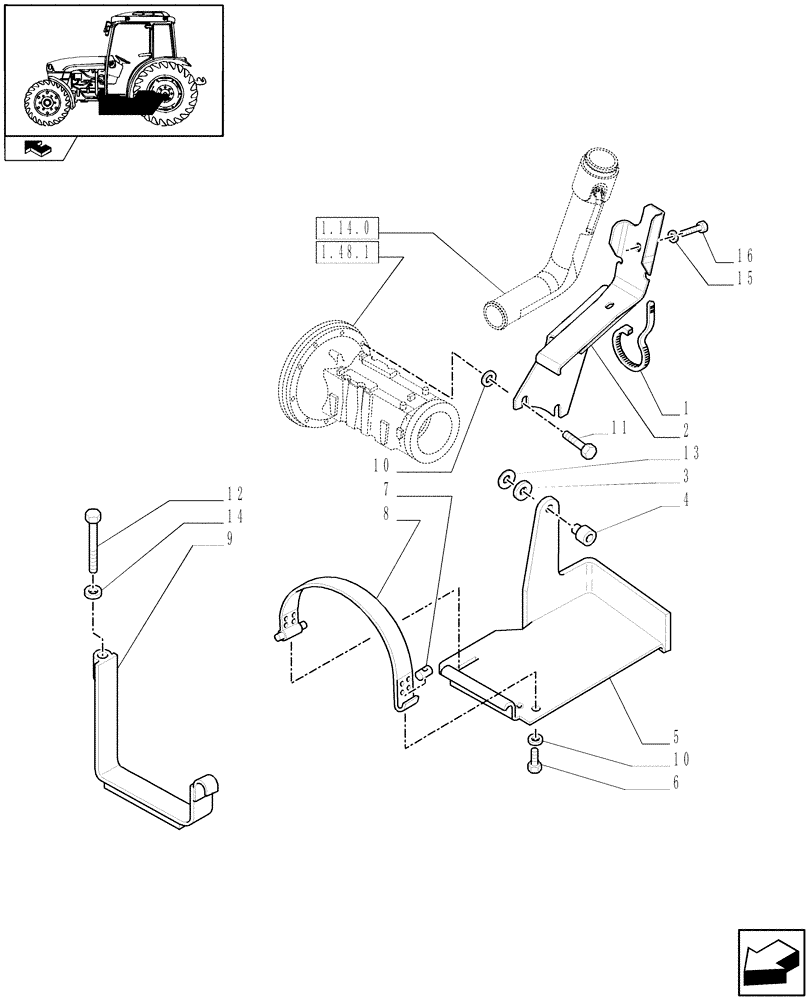

Запчасти Case IH FARMALL 65C (1.14.7) - FUEL TANK SUPPORT (02) - ENGINE EQUIPMENT

1

5154887

CABLE TIE,M7.8 x 450

CABLE STRAP

2шт.

2

87698494

SUPPORT

1шт.

3

5180539

SPACER

14.5 x 38 x 8

1шт.

4

5180044

BUSHING

1шт.

5

87607796

SUPPORT

1шт.

6

15213724

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

1шт.

7

5120755

PIN,16mm OD x 15mm L

1шт.

8

5186341

SECURING STRAP,945mm L

Rear

1шт.

9

47132058

BRACKET

Front

1шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

12

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

1шт.

13

5183917

WASHER

14.5 x 38 x 2

1шт.

14

10730501

WASHER,M10 x 20 OD x 2.5 Thk

1шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.
