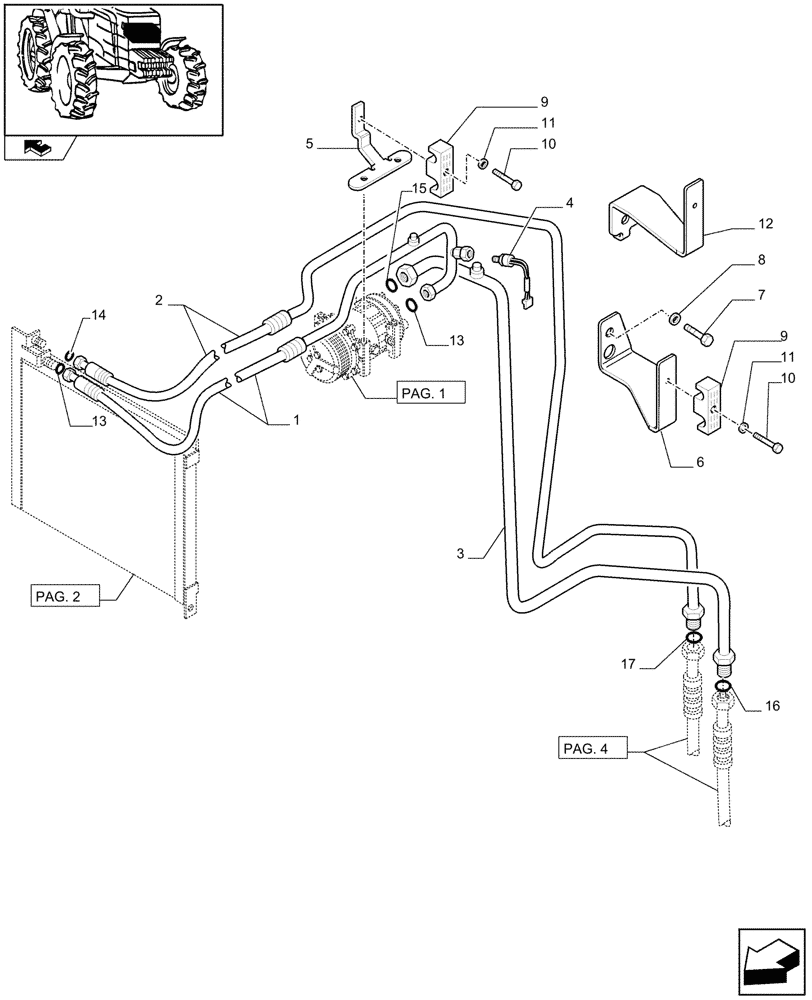

Запчасти Case IH FARMALL 65C (0.88.0[03]) - AIR CONDITIONING UNIT - FILTER AND PIPES (VAR.330638-332638-333638-330641) (01) - ENGINE

1

87688469

RIGID TUBE,12 mm OD

1шт.

2

87688468

RIGID TUBE

1шт.

3

87688467

RIGID TUBE

1шт.

4

87663969

PRESSURE SWITCH

1шт.

5

87699354

BRACKET

1шт.

6

87487374

BRACKET

, Serial Range: -C7042

1шт.

7

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

9

87571081

BRACKET

2шт.

10

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

11

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

84482113

BRACKET

, Start Serial: D7042

1шт.

13

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

14

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

15

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

16

452007C1

O-RING,29mm Thk x 12.7mm ID

1шт.

17

452005C1

O-RING

1шт.
