(0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR

Запчасти Case IH FARMALL 65C (0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR (01) - ENGINE

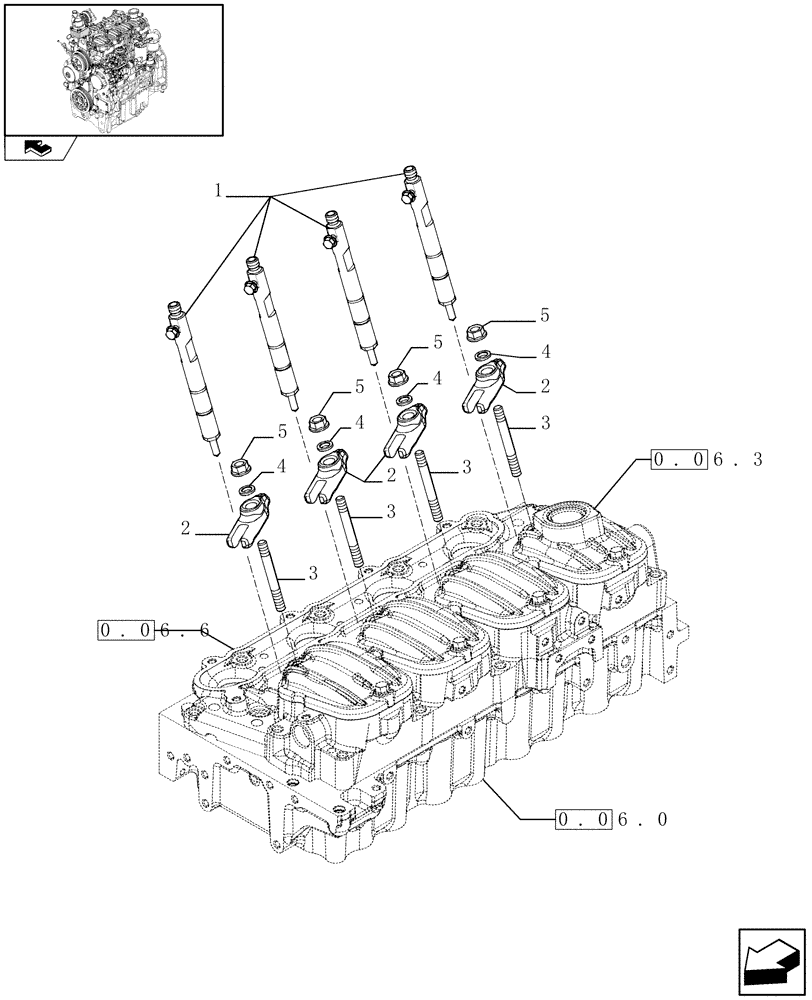

Схема запчастей Case IH FARMALL 65C - (0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR (01) - ENGINE
2
4
4
4
0.06.0
home
0.06.3
0.06.6
2
5
2
5
5
5
3
3
1
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504275234

FUEL SYSTEM INJECTOR

In alternative

4шт.

504275234R

REMAN-INJECT NOZZLE

Farmall 65C, Farmall 75C, All (4/08),

4шт.

504275234C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

504264798

FUEL SYSTEM INJECTOR

In alternative

4шт.

504275234R

REMAN-INJECT NOZZLE

Farmall 65C, Farmall 75C, All (4/08), Reman For New P/N's 504264798 & 504275234.

4шт.

504275234C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

504174745

BRACKET

4шт.

3

16747424

STUD

M8 x 16 x 60

4шт.

4

500353601

WASHER

4шт.

5

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

4шт.
