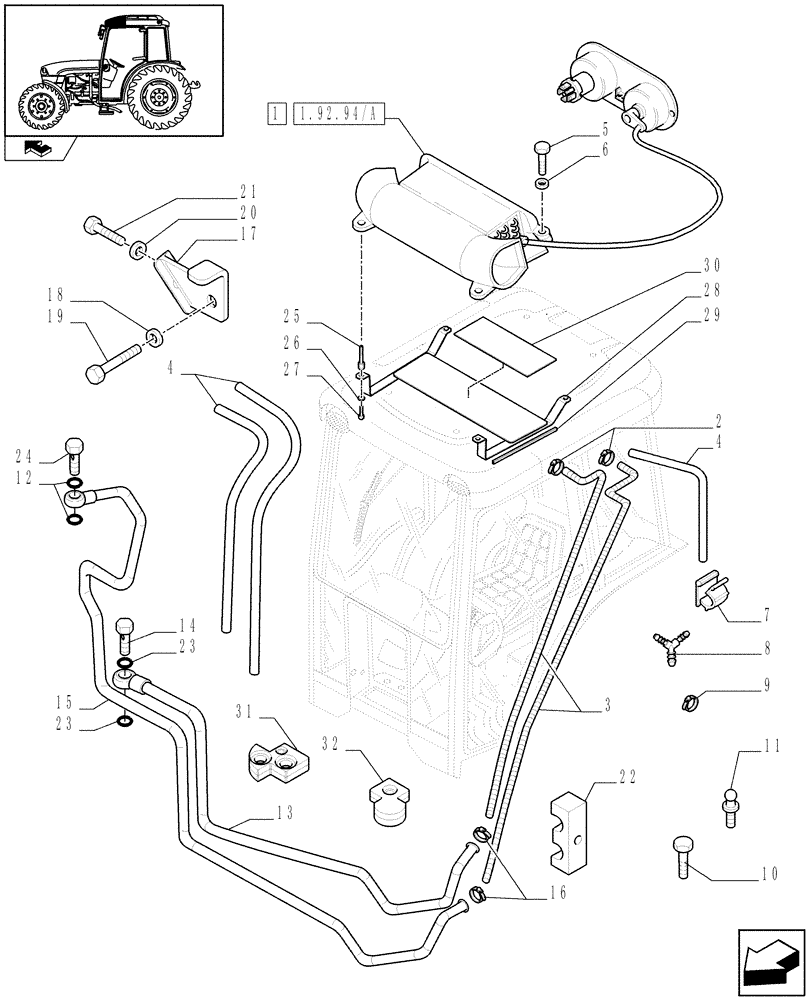

Запчасти Case IH FARMALL 65C (1.92.94[03]) - CAB - HEATING SYSTEM (10) - OPERATORS PLATFORM/CAB

1

5192078

HEATER

ASSY

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

2шт.

3

87484979

HEATER HOSE,13.97 mm ID x 3600.00 mm

Delivery

1шт.

3

87484980

HEATER HOSE,13.97 mm ID x 3600.00 mm

Return

1шт.

4

82849357

HOSE,10mm ID x 5000mm L

5000mm

1шт.

5

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

6

13578311

WASHER

D=8

2шт.

7

5182865

CLIP

1шт.

8

5186511

HYD CONNECTOR

Drain

1шт.

9

13423577

HOSE CLAMP,16.5mm - 18.3mm

D=16-18

2шт.

9

10186890

HOSE CLAMP,M14-16, Worm

1шт.

10

13278214

SCREW,M6 x 18mm

10шт.

10

18770114

SCREW

M6 x 16

4шт.

11

15152011

BALL STUD

10шт.

12

2852356

SEALING WASHER

2шт.

13

87688470

RIGID TUBE,16 mm OD

Cold

1шт.

14

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

1шт.

15

87688471

RIGID TUBE,16 mm OD

Hot

1шт.

16

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

17

87573622

RETAINER COLLAR

1шт.

18

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

19

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

20

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

21

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

22

87571442

BRACKET

2шт.

23

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

24

87699502

BANJO BOLT,M14 x 27mm

1шт.

25

84287796

SPACER

, Start Serial: D6507

4шт.

26

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

, Start Serial: D6507

4шт.

27

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

, Start Serial: D6507

4шт.

28

84287795

GUARD

, Start Serial: D6507

1шт.

29

5150787

, Start Serial: D6507

2шт.

30

84291139

RUBBER SEAL

, Start Serial: D6507

1шт.

31

84278954

COVER

RH, Start Serial: D6626

1шт.

32

84278956

COVER

LH, Start Serial: D6626

1шт.
