Запчасти Case IH FARMALL 65C (1.92.92/01[01]) - HINGED WINDSHIELD - WINDOW, CYLINDER AND HINGES (VAR.330660) (10) - OPERATORS PLATFORM/CAB

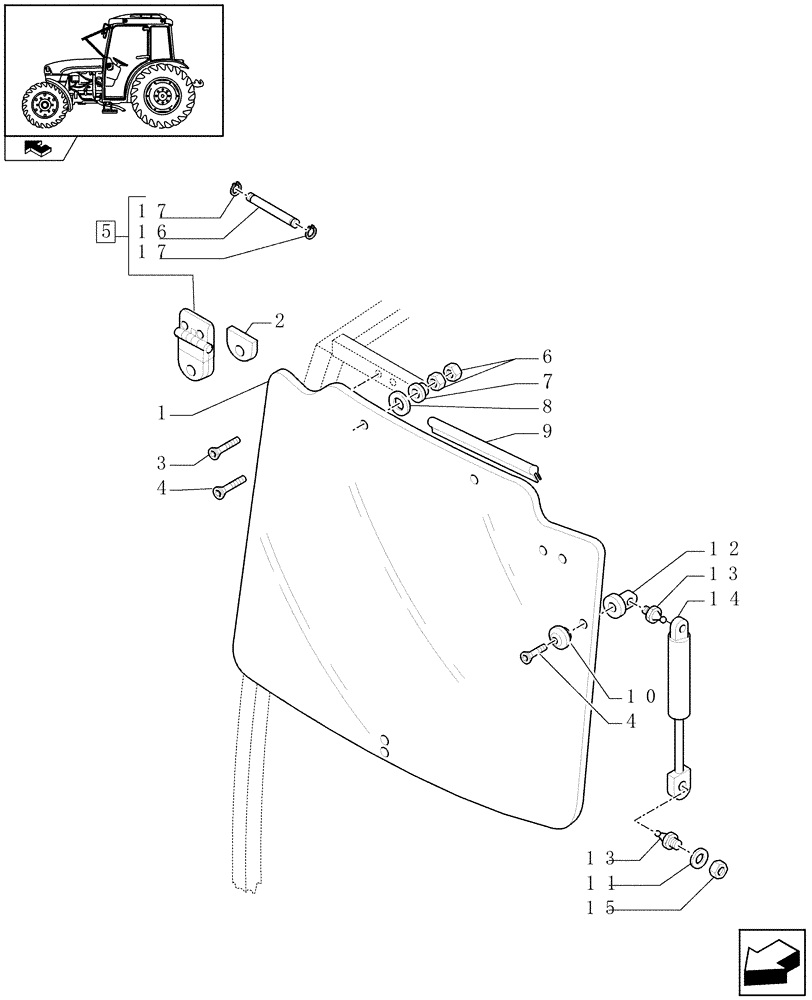

Схема запчастей Case IH FARMALL 65C - (1.92.92/01[01]) - HINGED WINDSHIELD - WINDOW, CYLINDER AND HINGES (VAR.330660) (10) - OPERATORS PLATFORM/CAB
1
10
17
12
6
5
11
15
home
16
13
3
8
14
4
7
17
2
4
9
13

Артикул

Название

Примечание

Количество

1

44911501

CAB GLASS ASSY

1шт.

2

5192749

SEAL

RH

1шт.

2

5192646

SEAL,11mm ID x 26mm OD x 10.5mm Thk

LH

1шт.

3

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

4шт.

4

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35

4шт.

5

5185205

HINGE

LH

2шт.

6

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

7

44911601

STOP

2шт.

8

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

2шт.

9

5196386

SEAL,3370mm L

1шт.

10

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

10

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING D=8

2шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

12

44910149

ARTICULATION

2шт.

13

44910148

BALL STUD,M8 x 1.25

4шт.

14

44910537

GAS STRUT

2шт.

15

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

4шт.

16

84155532

PIN,7.6mm OD x 87.8mm L

1шт.

17

11065676

SNAP RING,M8, Ext

2шт.

Выбрано товаров: 19
